Fiber Optic Splitter Assembly Process Flow

Creating and installing a fiber optic splitter involves selecting the splitter type, preparing fibers, and carefully connecting and testing the system to ensure minimal signal loss. Step 1: Determine Splitter Type and RequirementsChoose the appropriate splitter based on your network needs.

PL

C splitters are ideal for high-density, uniform splits (e.g., 1: 32, 1: 64) and are commonly used in FTTH and data center networks, while FBT splitters are suitable for low-ratio splits (e.g., 1: 2, 1: 4) and allow customizable splitting ratios. Decide on the split ratio, number of output ports, and wavelength range required for your application. Step 2: Gather Tools and MaterialsEssential tools include: Fiber optic cables and connectorsFiber optic splitter (PLC or FBT)Fiber optic stripping toolsCleaning supplies (lint-free wipes, alcohol)Fusion splicer or mechanical splice kitProtective enclosures for outdoor or centralized installations Step 3: Prepare the Fiber CablesMeasure and cut the fiber cables to the required lengths.

Strip the protective jacket carefully to expose the inner fibers without damaging them. Clean the fibers thoroughly to remove dust or debris, which is critical to prevent signal loss. Step 4: Connect Fibers to the SplitterIdentify the input and output ports on the splitter.

The input port typically connects to a single upstream fiber, while output ports connect to multiple downstream fibers. Use a fusion splicer or mechanical splice to join the fibers securely, ensuring minimal insertion loss.

For FB

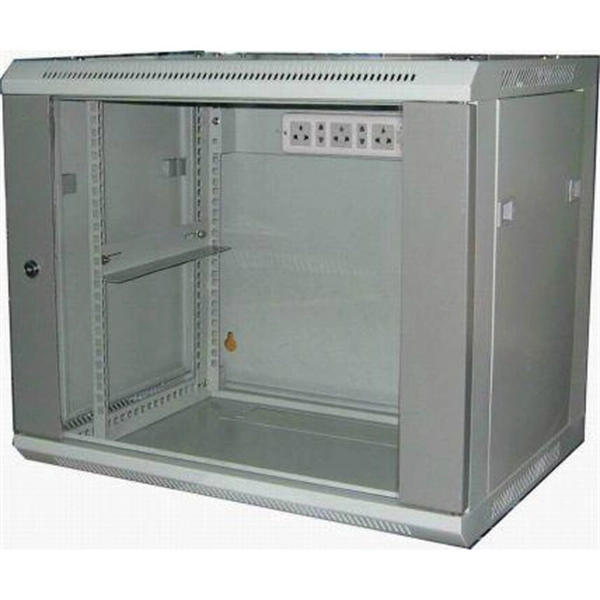

T splitters, the fused biconical taper region is created by heating and stretching fibers to achieve the desired split ratio. Step 5: Install the Splitter in the NetworkCentralized splitting: Place the splitter in a central office or cabinet, connecting one input fiber to the OLT and multiple outputs to ONUs or end users. Distributed splitting: Install splitters in closures or pedestals closer to the end users, often using cascaded combinations (e.g., 1x4 followed by 1x8 to achieve 1x32) to optimize fiber usage.

Ensure the splitter is securely mounted and protected from environmental factors if installed outdoors. Step 6: Test and VerifyMeasure insertion loss and return loss to ensure the splitter meets network specifications. Verify that all output fibers are transmitting signals correctly and that the split ratio is as expected.

Document the installation for future maintenance and troubleshooting. By following these steps, you can successfully manufacture (for FBT) or install a fiber optic splitter while maintaining signal integrity and network reliability.
