Customization Process for Hot-Selling Relay Protection ODF Patch Panels

Customization of relay protection ODF patch panels involves modular design, port density selection, material choice, standards compliance, and optional smart monitoring integration to meet specific network requirements. Key Steps in the Customization Process1. Requirement Analysis The first step is to assess the network environment and application scenario.

This includes determining the number of fibers, type of connectors (LC, SC, MPO/MTP), rack or wall-mount preference, and whether the panel will be used in data centers, substations, or FTTx deployments ( ). 2. Design and Modular Configuration Customization often involves selecting the panel style: sliding drawer, modular cassette, or fixed economical type.

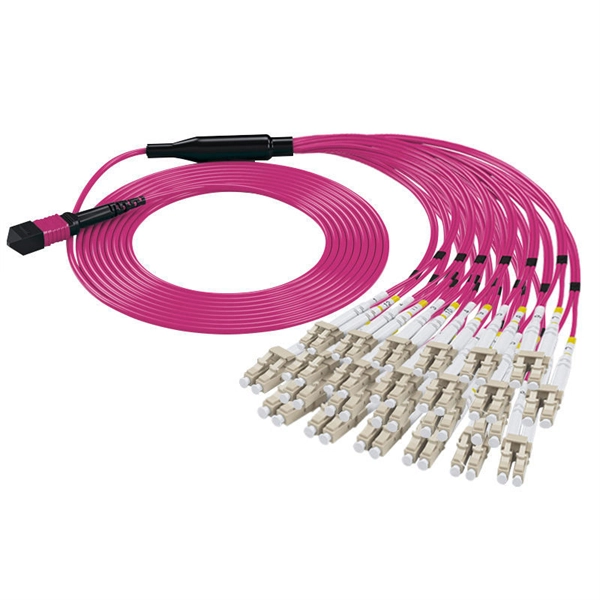

Modular designs allow quick exchange between MPO trunks and LC/SC breakout ports, supporting high-density fiber management and scalability ( ). Engineers can design panels to fit 19-inch racks or compact wall-mounted installations depending on space constraints. 3.

Material Selection and Durability Panels are typically made from cold-rolled steel or aluminum alloy with anti-corrosion powder coatings. Material choice affects durability, grounding, and environmental protection, which is critical for relay protection applications in harsh or industrial environments ( ). 4.

Standards Compliance Customized OD

Fs are manufactured according to international standards such as ISO/IEC 17417: 2011 and ISO9001 quality management systems. Compliance ensures proper fiber termination, splicing, and cross-connect functionality while maintaining signal integrity ( ). 5.

Integration of Smart Features (Optional) For advanced monitoring, Smart ODF or hybrid fiber panels can be integrated. These panels provide per-port optical power measurement, fiber-cut/disconnect alarms, and remote logging over Ethernet. This allows operators to detect patch-layer issues before dispatching engineers, improving reliability and reducing downtime ( ).

6. Quality Control and Testing Each customized panel undergoes strict quality control, including IQC (Incoming Quality Control), IPQC (In-Process Quality Control), and OQC (Outgoing Quality Control). This ensures that the final product meets design specifications and operational reliability ( ).

7. Deployment and Maintenance Considerations Customized panels are designed for easy installation and maintenance. Features like sliding trays, modular cassettes, and polarity management simplify fiber routing, reduce splicing errors, and allow quick upgrades or replacements in relay protection systems ( ).

Summary

The customization process for hot-selling relay protection ODF patch panels combines network-specific design, modularity, material durability, standards compliance, optional smart monitoring, and rigorous quality control. This ensures that the panels provide reliable fiber termination, efficient maintenance, and scalable deployment for high-density or critical network environments.
