Wiring Method for Network Cables and Distribution Boxes

Proper wiring of network cables and distribution boxes ensures reliable connectivity, safety, and compliance with standards.

Network Cable Wiring

Ethernet cables (Cat5e, Cat6, Cat7) are commonly used for network connections. Each cable contains four twisted pairs of wires, which must be terminated correctly using RJ45 connectors. Two main wiring standards exist: T568A and T568B, which define the order of colored wires inside the connector.

Consistency is crucial: both ends of a cable should follow the same standard to ensure proper communication. Steps for wiring Ethernet cables: Strip the cable jacket: Remove 1–2 inches of the outer insulation without damaging the inner wires. Untwist the pairs: Keep each twisted pair together and straighten them for insertion.

Arrange wires according to the chosen standard: Follow T568A or T568B color order. Insert into RJ45 connector: Ensure wires reach the end of the connector and crimp securely. Test the cable: Use an Ethernet cable tester to verify continuity and correct wiring.

Distribution Box Wiring

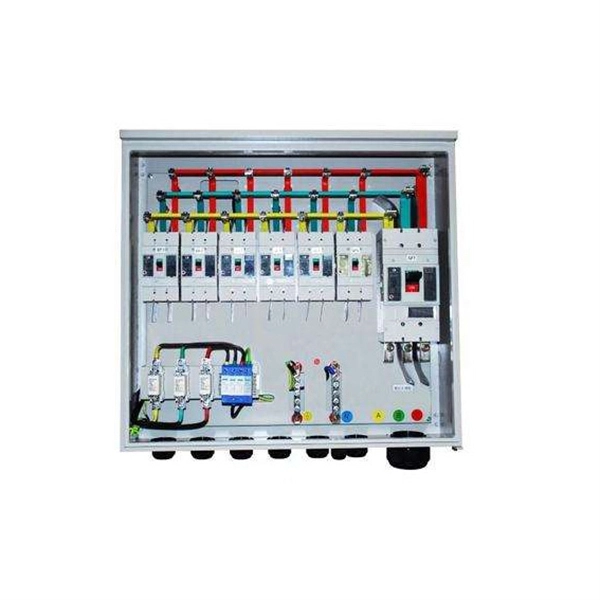

A distribution box (or panel) centralizes circuit protection and network connections. It contains components such as circuit breakers, fuses, terminal blocks, and patch panels. Proper installation ensures safety, prevents overloads, and simplifies maintenance.

Key considerations for wiring a distribution box: Site preparation: Install in a dry, ventilated area away from flammable or corrosive materials. Component layout: Use a clear wiring diagram, including single-line diagrams for system overview and detailed schematics for field wiring. Label all components, terminals, and conductors.

Cable management: Route cables neatly, secure with ties, and maintain separation between power and data lines to reduce interference. Grounding and protection: Implement proper grounding and use protective devices to prevent short circuits and overloads. Testing: Verify all connections with a multimeter or insulation tester before energizing the system.

Network Distribution Frames

In larger networks, distribution frames (MDF and IDF) act as central points for cable termination and management. The Main Distribution Frame (MDF) connects the internal network to external WAN links, while Intermediate Distribution Frames (IDFs) extend connectivity to different areas. Proper labeling, testing, and structured cabling practices are essential for troubleshooting and network reliability.

Best Practices

Maintain consistent color coding and labeling for all cables. Use version-controlled wiring diagrams for future maintenance. Separate data and power cables to minimize interference.

Always cut power before working on the distribution box and wear protective equipment. Test all connections thoroughly before commissioning the system. By following these guidelines, you can ensure a safe, organized, and efficient network and distribution box setup suitable for residential, commercial, or industrial environments.
