Telecommunication Fiber Optic Cable Identification

Fiber optic cable identification relies on standardized color codes, jacket markings, and labeling systems to ensure accurate installation, maintenance, and troubleshooting.

Fiber Color Coding Standards

Fiber optic cables use TIA-598-C color standards to identify individual fibers within a cable. Each fiber in a 12-fiber cable is assigned a specific color in the following sequence: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua. For cables with more than 12 fibers, the sequence repeats with additional markings, such as stripes, to maintain unique identification for each fiber.

In high-density cables, a tube-and-fiber system is used: the outer buffer tube is color-coded, and individual fibers inside follow the 12-color sequence, allowing technicians to identify fibers in large assemblies accurately.

Cable Jacket and Fiber Type Identification

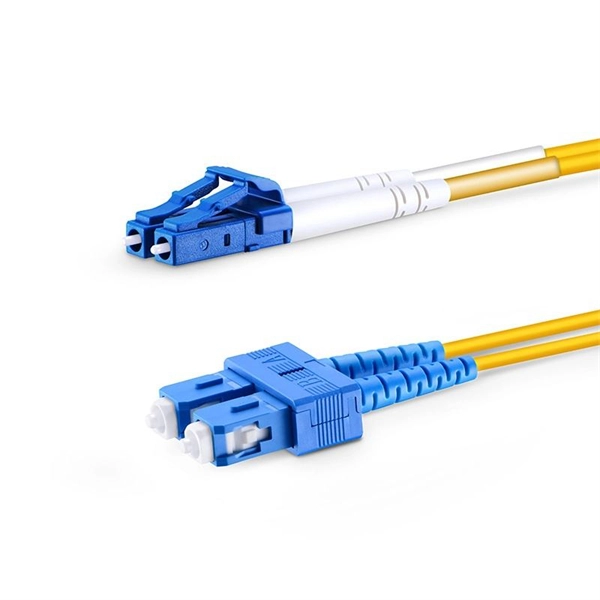

The outer jacket color provides a quick visual cue for the fiber type: Yellow: Single-mode fiber (SMF)Orange: Multimode fiber (OM1/OM2)Aqua: Multimode fiber (OM3/OM4)Black: Outdoor or UV-resistant cables, regardless of fiber type Connector colors also indicate fiber type and polish: Blue: Single-mode UPCGreen: Single-mode APCBeige, Black, Aqua, Magenta: Multimode fibers depending on grade Labeling and DocumentationProper labeling is critical for network management. According to TIA-606-B, labels should include: Cable IDRouting pathInstallation dateFiber type and count Durable, weather-resistant labels are recommended for both indoor and outdoor installations.

Regular audits ensure label integrity and accurate documentation.

Best Practices

Use standardized color codes to reduce miswiring and errors. Apply printed legends on jackets for additional clarity. Train staff on identification standards and labeling procedures.

Use tools like optical fiber identifiers or OTDRs to verify live fibers and trace connections. For high-fiber-count cables, use stripe markings or tube color coding to maintain unique identification.

Summary

Accurate fiber optic cable identification combines TIA-598-C color coding, jacket and connector color standards, and robust labeling practices. This system ensures safe, efficient, and error-free installation, maintenance, and troubleshooting in telecom and data networks, supporting both single-mode and multimode fiber applications.
