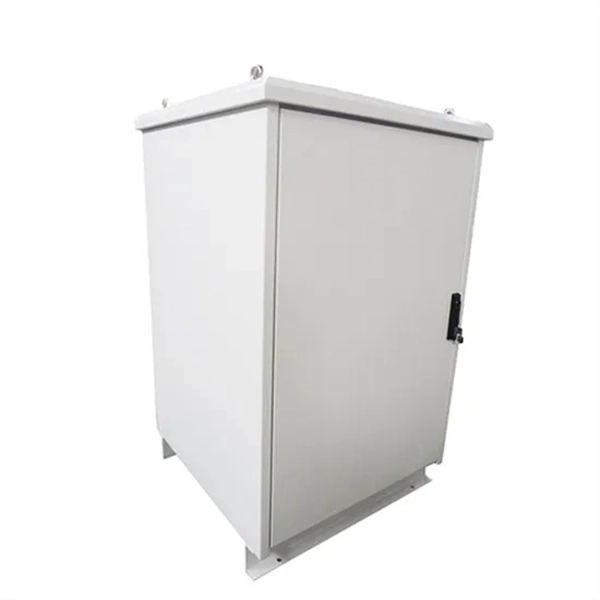

Measures for replacing the cables in the distribution box

Replacing cables in a distribution box requires cutting power, following proper wiring connections, and performing thorough safety and functionality tests.

Safety First

Before starting, ensure the main power supply is completely turned off and verify with a multimeter or electrical tester that no voltage is present in the box. Wear insulating gloves, safety glasses, and slip-resistant shoes to prevent electric shock or injury. Only qualified personnel should perform cable replacement if you are not trained in electrical work.

Preparing the Box and Cables

Inspect the distribution box for damage and ensure all components like circuit breakers, fuses, and terminal blocks are intact. Select wires that meet the required gauge and insulation standards for the circuits you are replacing. Gather tools such as wire strippers, screwdrivers, zip ties, and insulating tape.

Removing and Replacing Cables

Label all existing wires before disconnecting to avoid confusion during reconnection. Carefully loosen screws or terminals holding the old cables and remove them. Strip the insulation of the new wires to the correct length, ensuring the exposed conductor is neither too long nor too short.

Connect the new wires to the corresponding terminals: phase wire to phase terminal, neutral wire to neutral terminal, and ground wire to ground terminal. Secure wires neatly using zip ties and leave space for heat dissipation.

Testing and Verification

Perform an insulation resistance test to ensure no short circuits or leakage between wires and the box. Check circuit continuity and verify that all breakers and fuses are correctly rated and functioning. After confirming proper installation, restore power and test each circuit individually to ensure correct operation.

Additional Tips

Maintain clear labeling for future maintenance or troubleshooting. Ensure the box is mounted securely and, if outdoors, is waterproof with proper ventilation. Consider upgrading components like RCDs or surge protectors if the box is older or being expanded.

By following these steps, you can safely replace cables in a distribution box while maintaining compliance with electrical standards and ensuring long-term reliability.
