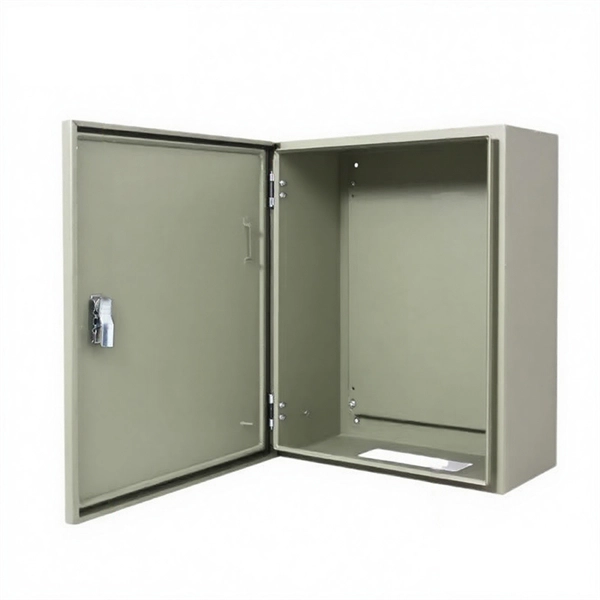

Standard configuration of mobile power distribution boxes on construction sites

A mobile power distribution box on a construction site is configured to safely deliver three-phase and single-phase power through protected circuits, flexible connectors, and modular components, ensuring adaptability, safety, and compliance with NEC and OSHA standards.

Key Components

Main Distribution Panel: Includes a master switch, residual current devices (RCDs), and miniature circuit breakers (MCBs) to protect against overloads and short circuits, and to allow isolation of the entire system if needed.

Sub-

Distribution Boards: Provide localized power to specific areas or equipment, allowing flexible load management and easier maintenance. Connectors and Sockets: Industrial-grade, pluggable connectors such as RST® or gesis® systems are used for safe, fast, and error-free connections. IP-rated connectors (IP54–IP69) protect against dust and water exposure.

Cabling: Heavy-duty, abrasion-resistant cables suitable for outdoor and high-traffic areas. Multi-conductor cables or hard-service cords (Type SO, SI) are recommended for durability. Metering Devices: Energy meters for each circuit or phase allow monitoring of consumption and load balancing, supporting transparent energy management.

Configuration Considerations

Load Planning: Determine total power demand, including continuous loads (lighting, containers) and high inrush current equipment (hydraulic power packs, concrete splitters). Apply diversity and simultaneity factors to size the main supply appropriately. Phase Distribution: Ensure symmetrical load distribution across three-phase circuits to prevent overloading and voltage imbalance.

Safety Compliance: Follow NEC Article 590 for temporary installations and OSHA requirements. Use GFCI-protected receptacles in damp or wet locations, and ensure all conductors and equipment are rated for site conditions. Mobility and Flexibility: Modular, pluggable components allow quick assembly, relocation, and extension as construction progresses.

Mounting brackets and robust enclosures facilitate installation even in confined spaces. Environmental Protection: Choose enclosures and connectors with appropriate IP ratings to protect against rain, dust, and mechanical impact. Ensure cables enter and exit boxes through bushings to prevent accidental contact with energized parts.

Operational Best Practices

Regular Inspection: Check for loose connections, damaged cables, and proper grounding before energizing circuits. Authorized Access: Only trained personnel should operate or modify the distribution box to prevent accidents. Temporary Use Duration: Follow local regulations regarding the maximum duration of temporary wiring; typically, temporary installations should not exceed 90 days without inspection or renewal.

Load Monitoring: Continuously monitor energy usage to prevent overloads and ensure balanced distribution across circuits. By integrating these components and considerations, a mobile power distribution box can provide safe, reliable, and adaptable electrical supply for all phases of construction, from lighting and tools to heavy machinery, while maintaining compliance with safety standards and operational efficiency.
