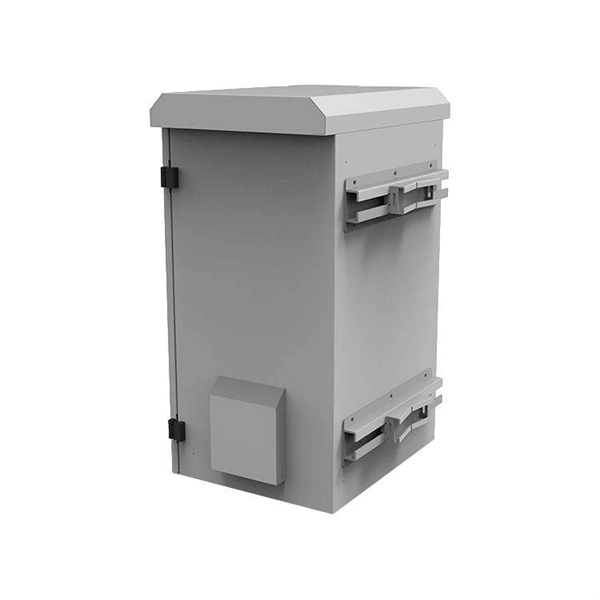

Standard configuration of 3-phase distribution box

Three-phase distribution boxes must comply with IEC 61439 standards, with specifications for voltage, phase configuration, IP rating, busbar capacity, and breaker protection. Key Standards and ComplianceIEC 61439-1 & 61439-3 are the primary international standards governing low-voltage switchgear and controlgear assemblies, including three-phase distribution boxes. These standards define requirements for design, construction, testing, and performance, ensuring safety, reliability, and durability in industrial and commercial applications (Bahra Electric).

Voltage and Phase Configuration

Typically designed for three-phase systems with 3 or 4 wires (including neutral). Voltage ratings commonly range from 110V to 415V AC, suitable for low-voltage distribution. Busbars are rated according to load requirements, e.g., 100A or 250A, with proper sizing for incoming and outgoing cables.

Ingress Protection (IP) RatingIP ratings indicate protection against dust and water, critical for environmental safety. Indoor boxes often have IP40, while outdoor or harsh environments require IP55 or higher. Proper sealing and regular maintenance are essential to maintain IP integrity.

Construction and Materials

Boxes are typically fabricated from 1–2 mm steel sheets, with powder-coated finishes for corrosion resistance. Outdoor boxes may include slanted roofs, overhangs, and reinforced channels to prevent water ingress and enhance durability. Locking mechanisms and concealed hinges improve security and reduce tampering risks.

Breakers and Protection

Equipped with MCCB (Molded Case Circuit Breakers) or plug-in type branch breakers (1, 2, or 3 pole) for overload and short-circuit protection. Neutral and earth terminals are sized to handle incoming and outgoing conductors safely. Busbar arrangements must provide adequate clearance from the enclosure to comply with electrical safety rules.

Additional Considerations

Mobility: Some boxes are designed with casters or wheels for temporary or construction site use, while fixed units are for industrial plants or data centers. Environmental adaptation: Boxes may be rated for grid-connected, generator-fed, or hybrid systems, depending on operational needs. Testing: Type test certificates from accredited labs (e.g., CPRI) are often required to verify compliance with IP and electrical standards.

SummaryThree-phase distribution boxes are critical for safe, efficient, and reliable power distribution in industrial, commercial, and construction environments. Compliance with IEC 61439 standards, proper IP rating, correct busbar and breaker sizing, and durable construction materials are essential to meet operational and safety requirements. Selecting the right box involves evaluating load, environment, mobility, and protection needs to ensure long-term performance and regulatory compliance.
