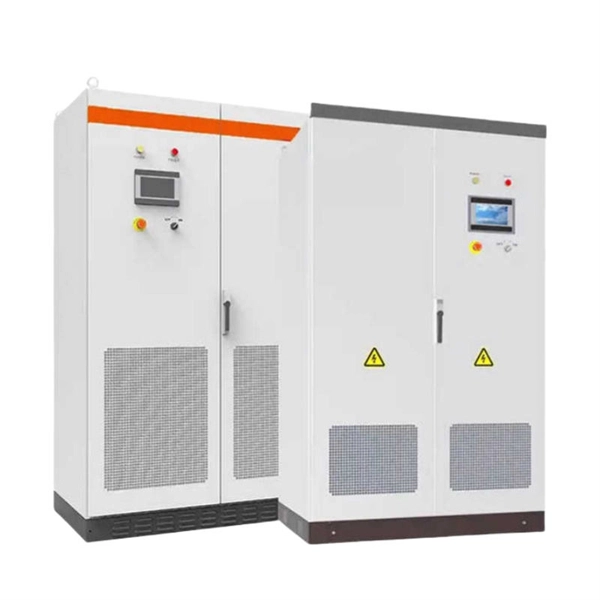

Photovoltaic grid-connected box and distribution box

A photovoltaic full-grid-connected distribution box safely manages, protects, and monitors electricity from solar panels before feeding surplus power into the grid.

Overview

A photovoltaic full-grid-connected distribution box is a critical component in solar PV systems, designed to collect electricity from multiple solar panel strings, provide protection, and interface with the utility grid. It allows users to consume self-generated electricity while safely exporting surplus power to the grid, ensuring system reliability and compliance with electrical safety standards.

Key Functions

Power Collection and Distribution: Combines DC output from multiple solar strings and routes it to the inverter for AC conversion. Protection Mechanisms: Includes overcurrent, short-circuit, over-voltage, under-voltage, surge, and grounding protection to safeguard both PV modules and inverters. Isolation and Maintenance: Equipped with disconnect switches or knife switches to safely isolate circuits for maintenance or emergency shutdowns.

Monitoring and Fault Detection: Advanced models feature intelligent monitoring of individual strings, fault detection, and remote diagnostics to maximize energy harvest and prevent damage.

Construction and Design

Materials: Typically made from cold-rolled steel or stainless steel with corrosion-resistant coatings, suitable for outdoor use. Protection Rating: IP54 to IP65 enclosures protect against dust, moisture, and UV exposure. Layout: Dual-layer design often separates metering and control components from maintenance areas, with transparent panels for easy monitoring.

Capacity: Disconnector and breaker ratings exceed 1. 5 times the maximum inverter output to ensure safe operation under peak loads.

Additional Features

Surge Protection: Standard 40kA surge protectors, customizable up to 100kA, protect against lightning and transient voltage spikes. Flexible Installation: Can be wall-mounted or pole-mounted, with grid inlets configurable from the side or bottom using waterproof joints. Scalability: Suitable for residential, commercial, and utility-scale solar projects, supporting systems from a few kilowatts to 50 kW or more.

Benefits

Enhances system safety by isolating faults and preventing damage to inverters and PV modules. Improves energy efficiency through intelligent monitoring and fault management. Simplifies installation and maintenance by centralizing connections and protective devices.

Ensures grid compliance and accurate power metering for surplus electricity export. In summary, a photovoltaic full-grid-connected distribution box is an essential hub that integrates protection, monitoring, and distribution functions, enabling safe, efficient, and reliable operation of solar PV systems while facilitating grid connection.
