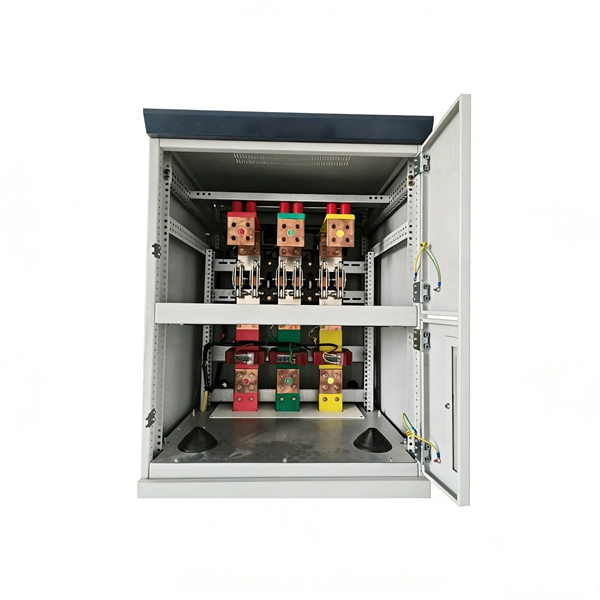

How to connect the main power busbar

Power busbars can be connected using bolts, clamps, welding, rivets, or crimped connectors, ensuring secure, low-resistance, and safe electrical connections.

Understanding Busbars

Busbars are metallic strips, typically made of copper or aluminum, that conduct electricity within switchboards, distribution boards, or substations. They serve as centralized points for distributing electrical power to multiple circuits, improving efficiency, scalability, and safety in electrical systems.

Connection Methods

Bolted Connections: Busbars can be fastened using bolts and nuts, providing a detachable and reliable connection. Ensure the bolts are tightened to the manufacturer's torque specifications to prevent resistance and overheating. Clamps and Fixtures: Special clamps can secure busbars together, offering strong mechanical support and electrical continuity, suitable for high-current applications.

Welding: Traditional or braze welding creates a continuous conduction path, ideal for permanent, high-current connections. Welding ensures minimal resistance and heat generation. Rivets: Riveting involves creating holes in the busbars and securing them with rivets.

This method is cost-effective and provides a tight joint. Crimped Connectors: Using high-quality crimping tools, wires or lugs can be securely attached to busbars. Properly matched wire gauge and terminal lugs are essential to prevent voltage drop and overheating.

Plug and Socket Connectors: These allow easy maintenance and replacement of busbars without dismantling the entire system.

Safety Precautions

Disconnect Power: Ensure all power sources are completely disconnected before working on busbars. Personal Protective Equipment (PPE): Use insulated gloves, safety glasses, and other protective gear. Verify Zero Energy: Use a multimeter to confirm circuits are de-energized before touching conductors.

Proper Tools: Use torque wrenches, ratcheting or hydraulic crimpers, and high-quality wire strippers to maintain connection integrity.

Material and Design Considerations

Material: Copper or tinned copper is preferred for high conductivity and corrosion resistance; aluminum is lighter but less conductive.

Cross-

Sectional Area: Ensure busbars are sized to handle the maximum current load without overheating. Insulation: Isolated busbars mounted on non-conductive bases prevent accidental shorts and improve safety.

Best Practices

Keep cable runs short with gentle bends to reduce resistance. Apply torque specifications precisely to avoid loose connections. Use protective covers to prevent accidental contact.

Consider future scalability by leaving space for additional circuits. By following these methods and precautions, busbar connections can be made safe, efficient, and reliable, ensuring optimal power distribution and minimizing the risk of electrical faults or overheating.
