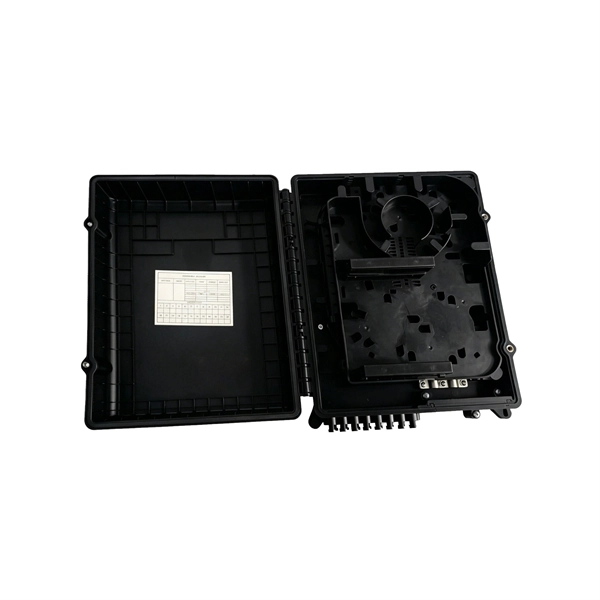

Do outdoor distribution boxes need to be grounded

Fiber and communications infrastructure knowledge brief Published 28 Apr 2025

Prepared for preliminary research by the METRA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Outdoor distribution boxes can pose grounding risks if not properly bonded, especially for metallic enclosures; proper grounding is essential for safety and NEC compliance.

Grounding Requirements

Outdoor distribution boxes, particularly those with metallic enclosures, must be properly grounded to prevent electrical hazards.

According to NE

C 250. 148, metallic junction boxes and cabinet doors must be bonded to the grounding system using a dedicated grounding screw or clip. This ensures that any fault current or accidental contact with live wires is safely directed to earth, reducing the risk of electric shock.

Non-metallic boxes, such as those made from ABS plastic, polycarbonate, or fiberglass, generally do not require grounding unless they contain metallic components like hinges or frames. These materials are inherently non-conductive, which minimizes the risk of electrical shock from stray currents.

Safety Considerations

Even when the main cabinet body is grounded, metal doors and removable panels can accumulate static charge or become live if internal wiring faults occur. Without proper bonding, anyone touching the door could complete a path to ground, creating a shock hazard. Outdoor boxes must also meet weatherproofing standards (NEMA 3R, 4, 4X, or IP65) to prevent moisture ingress, which can exacerbate grounding issues and lead to corrosion or short circuits.

Best Practices

Use dedicated grounding screws or clips to bond metallic doors and panels to the main grounding bar. Ensure the box is properly sealed against water and dust to maintain insulation integrity. Regularly inspect for corrosion, loose connections, or damaged seals, which can compromise grounding effectiveness.

Select materials appropriate for the environment: stainless steel or aluminum for corrosion resistance in outdoor settings, or high-quality non-metallic enclosures for low-voltage applications.

Conclusion

While outdoor distribution boxes are designed to be safe, they do pose grounding risks if metallic components are not properly bonded. Non-metallic boxes reduce this risk but still require attention to any conductive parts. Proper installation, grounding, and maintenance are critical to ensure safety and compliance with NEC standards.
