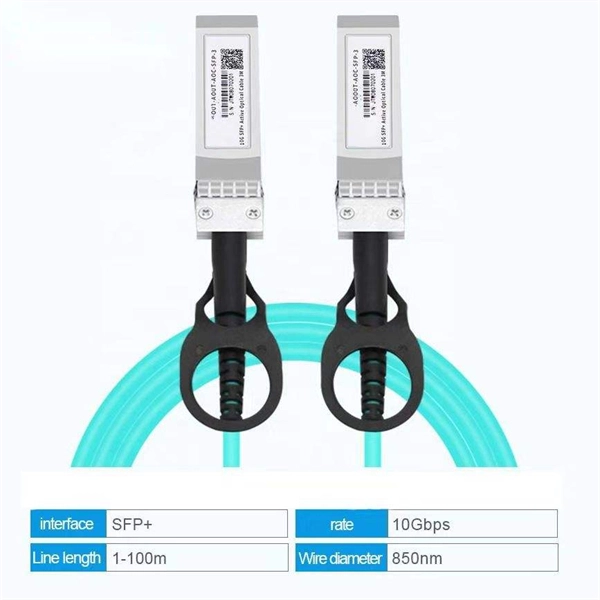

Fiber Optic Patch Cord Raw Materials

Fiber optic patch cords are made from ultra-pure silica or plastic fibers, ceramic ferrules, polymer coatings, aramid strength members, and protective jackets like PVC or LSZH.

Core and Cladding Materials

The optical fiber core, which transmits light signals, is typically made from ultra-pure silica glass for low signal attenuation over long distances, though plastic fibers are used in short-range applications. Surrounding the core is the cladding, made of glass or plastic with a lower refractive index than the core, which ensures total internal reflection to confine light within the core.

Coatings and Buffer Layers

Over the cladding, acrylate or polymer coatings are applied to protect the fiber from mechanical stress, moisture, and bending. The buffer coating adds additional protection and can be made from materials resistant to high temperatures or fire, depending on the application.

Strength Members

To provide tensile strength and prevent fiber breakage, aramid yarns (like Kevlar) or similar materials are used as strength members within the cable assembly. These materials absorb mechanical stress and protect the delicate fiber during installation and use.

Jackets

The outer protective jacket encases the fiber and strength members, providing environmental and mechanical protection. Common jacket materials include PVC (polyvinyl chloride) for flexibility and basic fire resistance, and LSZH (Low Smoke Zero Halogen) for environments requiring reduced smoke and toxic emissions during combustion. Some jackets are armored or UV-resistant for outdoor or harsh conditions.

Connectors and Ferrules

The connectors at each end of the patch cord are made from zirconia ceramic ferrules, which ensure precise alignment of the fiber cores and low insertion loss. Connector housings and strain relief boots are typically made from durable plastics.

Summary

In essence, the raw materials for fiber optic patch cords include: Core: Ultra-pure silica glass or plasticCladding: Glass or plastic with lower refractive indexCoatings/Buffer: Acrylate or polymer layersStrength Members: Aramid yarns (Kevlar)Jacket: PVC, LSZH, or armored materialsConnectors/Ferrules: Zirconia ceramic and durable plastics These materials are carefully selected to ensure signal integrity, mechanical durability, and environmental protection in fiber optic networks.
