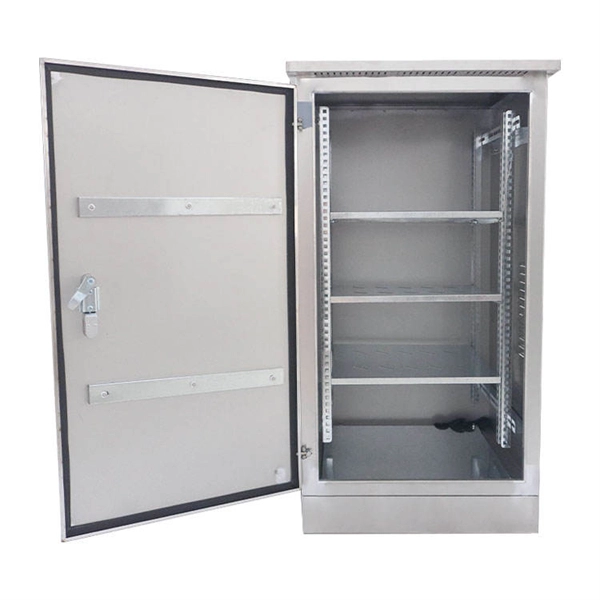

Cable tray connected to sc

Cable trays can be securely connected to switch cabinets using appropriate brackets, grounding, and support methods in compliance with NEC standards.

Mechanical Connection

Cable trays are typically mounted to floors, walls, ceilings, or directly to equipment racks and switch cabinets (SC) using mounting brackets, J-bolt kits, or specialized fasteners. The tray should be aligned with the cabinet entry points to allow smooth cable routing without sharp bends. Ladder-type trays are preferred for long runs as they provide mechanical support and strain relief for bundled cables.

Ensure the tray width and load class match the expected cable weight.

Grounding and Electrical Safety

According to NEC Article 392, cable trays must be properly grounded. Aluminum trays cannot serve as equipment grounding conductors for circuits above certain amperages, so a separate grounding conductor may be required. Use the recommended fasteners and connection brackets to maintain electrical continuity and prevent potential hazards.

Verify that the tray's cross-sectional area meets the minimum requirements for ground-fault protection.

Connection Brackets and Accessories

Various connecting brackets are available to attach trays to cabinets, walls, or other trays. These brackets differ in design depending on the purpose, such as straight connections, transitions, or offsets. Ensure that brackets are compatible with the tray material (steel, aluminum, or galvanized) and the cabinet structure.

Software Modeling

For planning and visualization, some software like DCO allows modeling of network cabling between rack-mounted devices. While direct ceiling cable tray modeling may be limited, you can simulate tray paths and connections to SCs for planning purposes.

Best Practices

Maintain minimum bend radius for cables exiting the tray to prevent damage. Use ventilated or solid trays depending on heat generation and electromagnetic interference considerations. Ensure secure attachment to the SC to prevent mechanical stress on cables.

Follow manufacturer guidelines for tray installation, grounding, and load limits. By following these guidelines, cable trays can be safely and effectively connected to switch cabinets, ensuring both mechanical stability and electrical safety.
