How to re-grind a 12-core optical cable

Re-grinding a 12-core optical cable involves careful stripping, cleaning, cleaving, and fusion splicing of each fiber core to restore signal integrity.

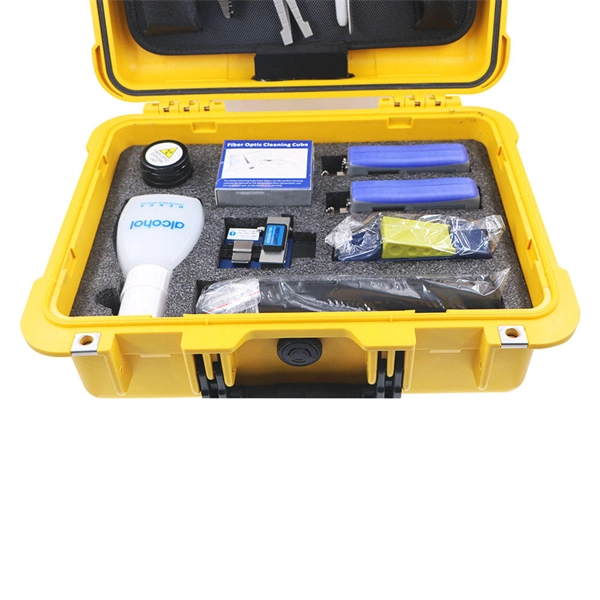

Tools and Materials Needed

Fiber optic stripper and cable stripperKevlar cutterHigh-precision fiber cleaverFusion splicerFiber cleaning supplies (lint-free wipes, isopropyl alcohol)Heat-shrink splice protectors or sleevesSafety glasses and gloves for protection Step-by-Step Procedure1.

Prepare the Cable

Strip the outer jacket of the 12-core cable using a cable stripper, exposing the inner fibers without damaging them. Peel back the aramid yarn and buffer layers carefully. Insert fiber protection sleeves before stripping individual fibers to prevent contamination.

2.

Clean Each Fiber

Use lint-free wipes and isopropyl alcohol to remove any debris or oils from the bare fiber cores. Clean fibers ensure minimal signal loss during splicing. 3.

Cleave the Fibers

Use a high-precision fiber cleaver to cut each fiber end at a precise 90-degree angle. Proper cleaving is critical for a strong, low-loss splice. Ensure the cleave length is appropriate so that the fiber protection sleeve can cover the bare fiber completely.

4.

Fusion Splicing

Place the cleaved fiber ends into a fusion splicer. Modern splicers automatically align the fibers and fuse them using an electric arc. Repeat this process for all 12 cores, ensuring each fiber is correctly aligned and fused.

5.

Protect the Splice

Slide heat-shrink splice protectors over the fused fibers and shrink them using a heat oven or built-in splicer heater. This protects the splice from mechanical stress and environmental damage. 6.

Testing

Use a visual fault locator (VFL) or optical time-domain reflectometer (OTDR) to verify the integrity of each fiber splice. Check for signal loss and ensure all 12 cores are transmitting correctly.

Safety and Handling Tips

Avoid bending fibers beyond the minimum bend radius to prevent breakage. Handle fibers gently to prevent kinks or crushing, which can degrade performance. Always wear safety glasses to protect against fiber shards.

By following these steps, you can effectively re-grind or re-cleave a 12-core optical cable, ensuring minimal signal loss and long-term reliability of the fiber network.
