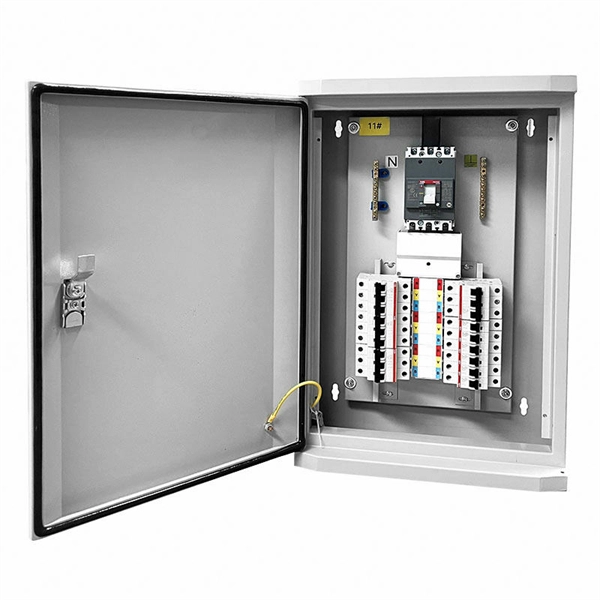

Double-row wiring in indoor distribution box

Double-row wiring in an indoor distribution box involves arranging circuit breakers in two horizontal rows, connecting phase lines to MCBs, and distributing neutral and earth lines via busbars for organized, safe, and efficient power distribution.

Overview of Double-

Row Configuration

A double-row distribution box is typically used when the number of circuits exceeds the capacity of a single row. Each row contains a set of MCBs (Miniature Circuit Breakers) or RCCBs (Residual Current Circuit Breakers) mounted on DIN rails. The phase (live) wires are connected to the input terminals of the breakers, while the neutral wires are connected to a neutral busbar, and the earth wires to an earth busbar.

Wiring Steps

Incoming Power Connection: The main phase and neutral lines from the isolator or main switch are fed into the distribution box. The phase line is split to feed the top and bottom rows of breakers, either via a busbar or jumper connections. Breaker Arrangement: Top row: Typically used for lighting circuits or lower-load devices.

Bottom row: Often used for power outlets, heavy appliances, or high-load circuits. Ensure that each breaker is rated appropriately for the connected load. Neutral and Earth Distribution: Neutral wires from each circuit are connected to a neutral busbar, which may run along the side or back of the box.

Earth wires are connected to a separate earth busbar, which is bonded to the building's grounding system. Inter-row Connections: If the phase busbar is only on one row, use insulated jumpers to connect the second row of breakers. Ensure that all connections are tight and properly insulated to prevent short circuits.

Labeling and Safety: Clearly label each breaker with the corresponding circuit. Maintain proper spacing between rows to allow heat dissipation and easy access for maintenance.

Best Practices

Use DI

N rail-mounted breakers for modularity and easy replacement. Ensure proper wire gauge according to the load of each circuit. Maintain neat cable management to avoid overcrowding and reduce the risk of overheating.

Verify earthing and insulation before powering on the system. Follow local electrical codes (NEC, IEC, or regional standards) for safety and compliance.

Advantages of Double-

Row Wiring

Space Efficiency: Accommodates more circuits in a compact box. Organized Layout: Separates lighting and power circuits for easier troubleshooting. Scalability: Allows future expansion without replacing the entire distribution board.

By following these guidelines, a double-row indoor distribution box can safely and efficiently manage multiple circuits while maintaining compliance with electrical standards and ensuring long-term reliability.
