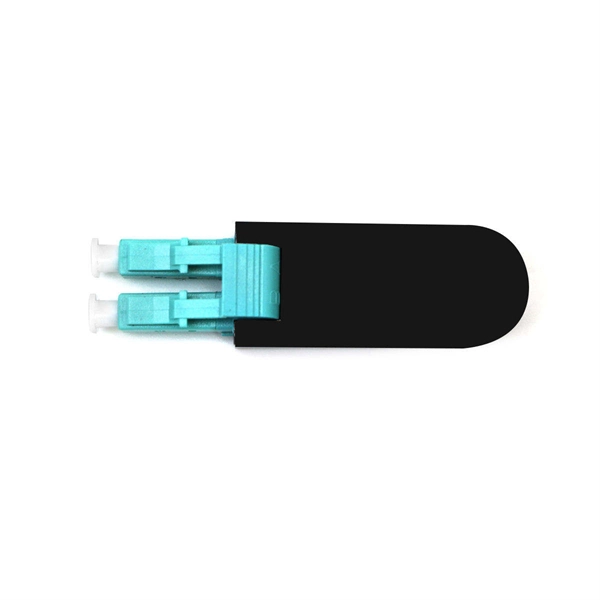

Fiber Optic Patch Cord Testing Process Requirements

Fiber optic patch cords are tested using standardized procedures involving insertion loss, return loss, polarity verification, and bidirectional measurements, following ANSI/TIA-568. 3-E, IEC, and manufacturer guidelines. Key Testing StandardsANSI/TIA-568.

3-E specifies performance, transmission, and test requirements for patch cords, connectors, and cabling components. It defines methods to maintain polarity in simplex, duplex, and array connections, including consecutive-fiber and reverse-pair positioning for duplex systems, and recommends consistent polarity methods across installations.

IE

C standards provide international guidance on fiber geometry, attenuation, macro bending loss, and chromatic dispersion, ensuring global interoperability. Manufacturer-specific guidelines, such as Corning's, outline Tier 1 and Tier 2 testing for system verification and baseline documentation.

Testing Equipment and Methods

Optical Loss Test Set (OLTS): Combines a stabilized light source and optical power meter to measure end-to-end insertion loss (IL).

I

L is calculated as IL = 10 log₁₀(P_in / P_out),. Variable Optical Attenuator (VOA): Used to calibrate or adjust launched power. Optical Time Domain Reflectometer (OTDR): Detects discrete event losses, reflections, and splices over longer fiber spans.

OTD

R traces can be used for cable acceptance, fault location, and optical return loss (RL) measurement. Optical Frequency Domain Reflectometer (OFDR): Provides high spatial resolution for short distances or device-level inspection.

Testing Procedure

Reference Calibration: Connect a factory-certified reference patch cord to establish a zero-loss baseline.

DU

T Measurement: Replace the reference with the device under test (DUT) and measure output power. Bidirectional averaging is recommended to compensate for connector asymmetries. Return Loss Measurement: Measure back-reflected power to calculate RL = 10 log₁₀(P_forward / P_reflected).

High R

L (>50 dB) indicates minimal reflections. Polarity Verification: Use a visual fault locator (VFL) or OLTS during attenuation testing to confirm correct fiber polarity. Tiered Testing: Tier 1 includes link attenuation, length, and polarity checks; Tier 2 (optional) uses OTDR for splice and connector loss, documentation, and troubleshooting.

Best Practices

Bidirectional Testing: Measure IL and RL from both ends and average results to improve accuracy. Wavelength Selection: Test at the operational wavelength of the network (e.g., 850 nm for VCSEL-based networks). Cleanliness: Ensure connectors and patch cords are clean to prevent measurement errors.

Documentation: Record all test results to establish a baseline for future troubleshooting and network maintenance. Following these procedures ensures that fiber optic patch cords meet performance standards, maintain network reliability, and comply with industry and manufacturer requirements.
