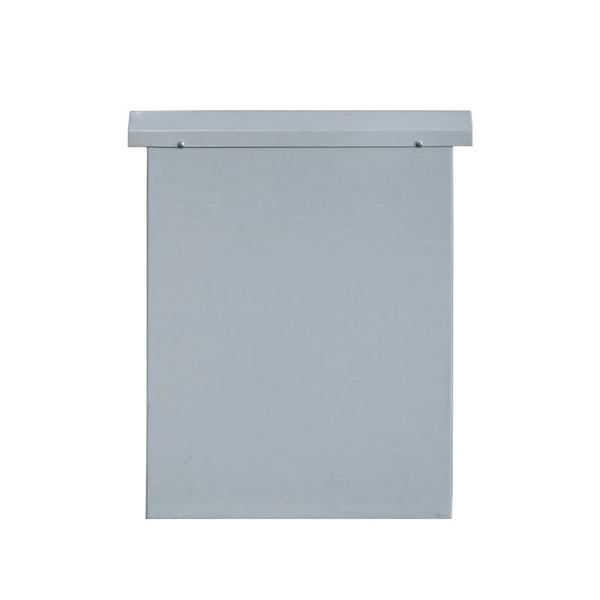

Photovoltaic combiner box component selection

A photovoltaic (PV) combiner box consolidates the outputs of multiple solar panel strings into a single output, and it typically includes components such as circuit breakers, fuses, surge protection devices, and disconnect switches. Key Components of a PV Combiner BoxDC Circuit Breakers: Function: Protects the circuits from electrical faults by interrupting the flow of current in case of overcurrent situations. Details: Each string of solar panels is connected to a dedicated circuit breaker, ensuring individual protection.

Solar Fuses: Function: Provides string protection by blowing during fault conditions, disconnecting the affected circuit to prevent damage to other components. Details: The type and rating of fuses are selected based on the specifications of the solar panels and strings. Surge Protection Devices (SPDs): Function: Protects the system from voltage spikes caused by lightning or other electrical surges.

Details: SPDs divert excess voltage to ground, safeguarding sensitive equipment like inverters from damage.

D

C Disconnect Switch: Function: Allows for safe disconnection of power from the solar array for maintenance or emergency situations. Details: This switch can isolate specific parts of the system, ensuring safety during servicing. Busbar: Function: Acts as a mechanical conductor that combines multiple circuit outputs into one.

Details: It is typically located within the box, where all input wires converge before being routed to the inverter. Blocking Diodes: Function: Prevent back-feeding of current from one string to another, which helps maintain optimal performance. Details: These diodes ensure that the energy generated by each string is utilized effectively.

Monitoring Equipment: Function: Advanced combiner boxes may include devices to monitor performance metrics, helping to identify issues quickly. Details: This feature enhances system management and allows for real-time performance tracking. Benefits of Using a PV Combiner BoxEfficiency: By consolidating connections, combiner boxes reduce wiring complexity and improve energy distribution within solar power systems.

Cost-

Effectiveness: They lower installation labor costs and material expenses, especially in larger installations with multiple strings of panels. Enhanced Reliability: Built-in protective features ensure that the inverter operates safely and reliably, protecting against electrical faults. In summary, a photovoltaic combiner box is essential for managing the outputs of multiple solar panel strings, ensuring safety, efficiency, and reliability in solar energy systems.
