How to lay fiber optic cables for park surveillance

Laying fiber optic cables for park surveillance requires careful planning, proper conduit or aerial installation, and integration with PoE switches to ensure reliable, long-distance connectivity.

Planning and Route Design

Start by mapping the park and identifying all camera locations, control rooms, and network hubs. Define a clear cable route that avoids unnecessary bends, obstacles, and potential hazards, while allowing for future expansion. Decide whether the fiber will be buried underground or installed aerially on poles, considering aesthetics, safety, and maintenance access.

For underground installations, obtain necessary permits and right-of-way approvals and conduct a site survey to assess soil conditions, terrain, and existing utilities.

Cable Selection

For outdoor park surveillance, Single Mode fiber is recommended for long distances, while Multimode fiber can be used for shorter runs. Use weather-resistant, outdoor-rated cables if exposed to the elements. Consider installing 12-strand or 24-strand cables to allow for future expansion and multiple camera connections.

Installation Methods

Underground: Dig trenches or use micro-trenching to minimize disruption. Lay fiber inside protective conduits to prevent damage and facilitate future upgrades. Maintain proper bend radius and avoid exceeding the cable's pulling tension to prevent fiber breakage.

Aerial: Use poles with clamps and tensioners to string the fiber, ensuring proper spacing and tension. This method is faster but may be more exposed to weather or vandalism.

Network Topology and Equipment

Choose a star topology for reliability, connecting each camera or cluster of cameras directly to a central hub or NVR. Avoid daisy-chaining, which increases points of failure.

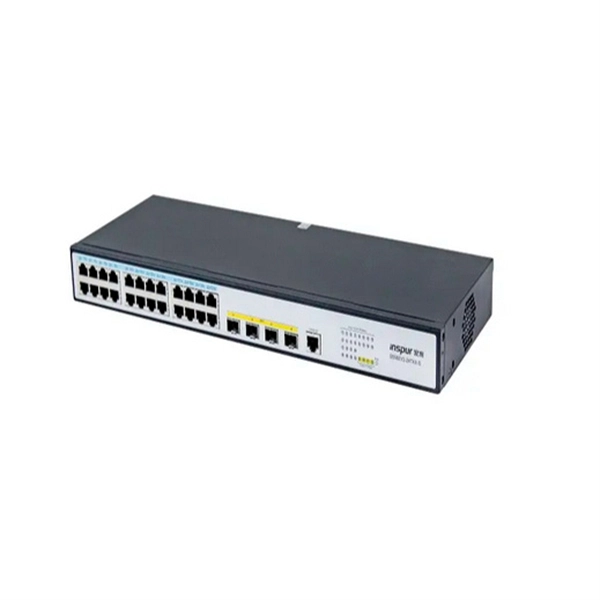

Use Po

E switches to power cameras over Ethernet, and connect them to the fiber backbone using SFP transceivers or media converters. Ensure switches and enclosures are accessible for maintenance and document all fiber routes and terminations for future troubleshooting.

Testing and Maintenance

After installation, test each fiber link for continuity, signal loss, and bandwidth performance. Label all cables and maintain a network diagram. Schedule periodic inspections to check for physical damage, water ingress, or connector issues, ensuring long-term reliability.

By following these steps—careful planning, proper cable selection, robust installation, and reliable network design—you can create a scalable, high-performance fiber optic network for park surveillance that supports high-resolution cameras and future expansion.
