How to connect the pigtail to the fiber optic module

To connect a fiber optic module to a pigtail, you typically use a fusion or mechanical splice to join the bare fiber end of the pigtail to the incoming fiber, while the pre-terminated connector plugs into the module.

Understanding Fiber Optic Pigtails

A fiber optic pigtail is a short optical fiber with a factory-terminated connector on one end and a bare fiber on the other. The connector end plugs directly into a fiber optic module, patch panel, or active equipment, while the bare fiber end is designed for permanent splicing to the incoming fiber. This ensures low signal loss and reliable connectivity.

Tools and Materials Needed

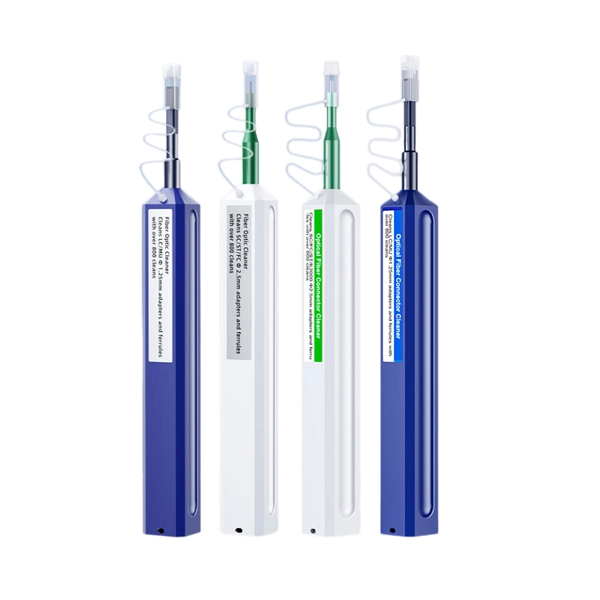

Before starting, gather the following tools: Fusion splicer or mechanical splicing kitFiber cleaver for precise cuttingFiber stripper to remove the protective coatingIsopropyl alcohol wipes for cleaningProtective sleeves for spliced fibersPigtail and patch cords Step-by-Step Connection ProcessPrepare the Fiber: Strip the protective coating from the incoming fiber and the pigtail's bare end using a fiber stripper. Clean both fibers with isopropyl alcohol to remove dust and debris. Cleave the Fiber: Use a fiber cleaver to create a smooth, perpendicular end on both the incoming fiber and the pigtail.

Proper cleaving is critical for a low-loss splice. Splice the Fibers: Fusion Splicing: Place both fibers into a fusion splicer. The splicer aligns the fibers and fuses them using an electric arc, creating a permanent, low-loss joint.

Mechanical Splicing: If a fusion splicer is unavailable, use a mechanical splice to align the fibers in a gel-filled or adhesive sleeve. This method is slightly higher in loss but avoids expensive equipment. Protect the Splice: Slide a protective sleeve over the splice and shrink it using a heat source if required.

This prevents damage and maintains signal integrity. Connect to the Module: Insert the factory-terminated connector of the pigtail into the fiber optic module, patch panel, or adapter port. Ensure it clicks securely and is properly aligned.

Test the Connection: Use an optical power meter or OTDR (Optical Time-Domain Reflectometer) to verify signal strength and check for excessive loss or back reflection.

Best Practices

Always work in a clean environment to prevent dust contamination. Handle fibers carefully to avoid microbends or cracks. Use high-quality pigtails and splicing tools to minimize signal loss.

Label fibers and pigtails for easy identification in complex networks. By following these steps, you can reliably connect a fiber optic module to a pigtail, ensuring optimal network performance and long-term reliability.
