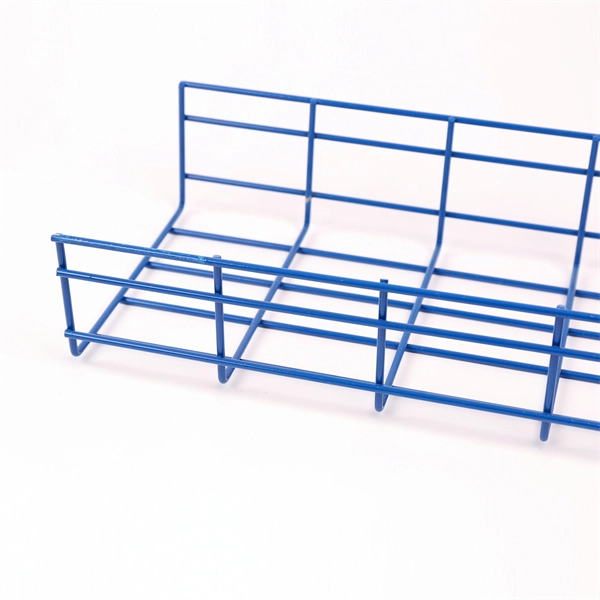

How thick and long are the cables inside the cable tray

The appropriate cable thickness inside a cable tray depends on the type of cable, load, and tray design, with small control cables typically fitting in trays with 6–12 inch rung spacing, and large power cables requiring 9–18 inch spacing to maintain proper bending radii and heat dissipation. Key Factors Affecting Cable Thickness Selection1.

Cable Type and Diameter

Small multi-conductor control or instrumentation cables (Type TC, PLTC, ITC) can be installed in trays with 6–12 inch rung spacing without risk of damage, though excessive drooping should be avoided for neatness. Large power cables require wider rung spacing (9–18 inches) to allow proper bending radii and prevent mechanical stress. 2.

Tray Type and Material

Ladder trays are preferred for heavy or large-diameter cables because their open rungs allow air circulation, which helps dissipate heat generated by thicker cables. Solid bottom trays provide uniform support but may retain moisture and reduce airflow, which can affect thicker cables if heat buildup occurs. 3.

Heat Dissipation and Load Capacity

Thicker cables generate more heat; therefore, the tray must allow sufficient spacing to prevent overheating. Material thickness of the tray itself is critical: thicker side rails and rungs increase load capacity and support heavier cables safely. 4.

Bending Radius and Installation

The cable manufacturer's recommended minimum bending radius must be maintained. If the tray's rung spacing is too close, some rungs may need to be removed or a tray with wider spacing selected. For small cables, closer rung spacing helps maintain neatness and prevents sagging, while for large cables, wider spacing ensures proper bending and reduces mechanical stress.

5.

Compliance and Standards

Always follow NEC, NEMA, and IEC guidelines for cable fill, spacing, and tray load capacity. Consult the cable tray manufacturer for specific recommendations on maximum cable diameter and tray loading to ensure safety and compliance.

Practical Recommendation

Small control/instrumentation cables: 6–12 inch rung spacing, cable diameters typically under 1 inch. Medium power cables: 9–12 inch spacing, diameters up to 2 inches depending on tray width. Large power cables: 12–18 inch spacing, diameters over 2 inches, ensuring bending radius and heat dissipation are maintained.

By considering cable type, diameter, tray design, and heat dissipation, you can select the appropriate cable thickness and tray configuration to ensure safe, reliable, and code-compliant installations.
