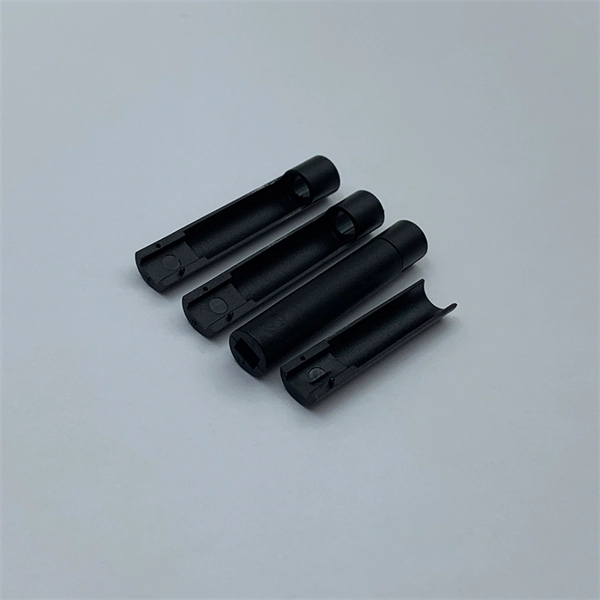

Quick-connect fiber optic cables for smart buildings

Connecting fiber optic cables in smart buildings involves designing a fiber backbone, using hybrid or optical LAN solutions, and integrating patch panels and distribution frames to ensure high-speed, reliable, and future-proof connectivity.

Planning and Design

Start by assessing the building layout and network requirements. Identify key IT spaces such as the entrance facility (EF), main distribution frame (MDF), telecommunications rooms (TRs), and tenant spaces or IDFs. The fiber backbone should interconnect these points to support high-capacity data transmission for Internet service, building automation systems, CCTV, and VoIP communications.

Consider future scalability by planning for higher speeds (10G, 25G, with potential upgrades to 50G or 100G) and additional devices.

Choosing Fiber Types and Cabling

Select single-mode fiber for long-distance connections and multi-mode fiber for shorter runs within floors or wings. For hybrid solutions, use cables combining fiber strands for data and copper conductors for power, which simplifies installation and supports devices requiring both connectivity and power. Multi-strand fiber (e.g., 6 or 12 strands) is recommended to accommodate multiple endpoints and future expansion.

Installation Steps

Route Fiber Cables: Plan pathways alongside other utilities like electrical and plumbing systems to optimize space and minimize interference. Use conduits or cable trays to protect fibers and maintain bend radius requirements. Terminate and Connect: Fiber cables are terminated at patch panels or optical modems in MDFs and IDFs.

Use connectors such as LC or SC types, ensuring proper polishing and cleaning to prevent signal loss. Connect to Network Devices: From patch panels, connect fibers to switches, optical modems, or Optical LAN endpoints.

Optical LA

N allows centralized switches to distribute high-speed connectivity efficiently across the building. Test and Validate: Use optical power meters and OTDR (Optical Time-Domain Reflectometer) testing to verify signal integrity, loss, and continuity. Ensure compliance with ANSI/TIA and NEC standards for safety and performance.

Integration with Smart Building SystemsFiber networks support IoT devices, automated lighting, HVAC, security cameras, and building management systems. Use the fiber backbone to connect these systems to centralized control units, ensuring low latency and high reliability. Hybrid cabling can deliver both data and power to edge devices, reducing the need for separate power lines.

Best Practices

Centralize distribution: Place MDFs near the building entrance and IDFs strategically on each floor or wing for optimal coverage. Future-proofing: Install extra fiber strands and conduits to accommodate future upgrades or additional devices. Compliance: Follow local building codes and standards to ensure safety, signal integrity, and long-term reliability.

Documentation: Maintain detailed network diagrams, labeling, and records of fiber routes, terminations, and test results for maintenance and troubleshooting. By following these steps, smart buildings can achieve high-speed, scalable, and reliable fiber optic connectivity that supports current and future digital infrastructure needs.
