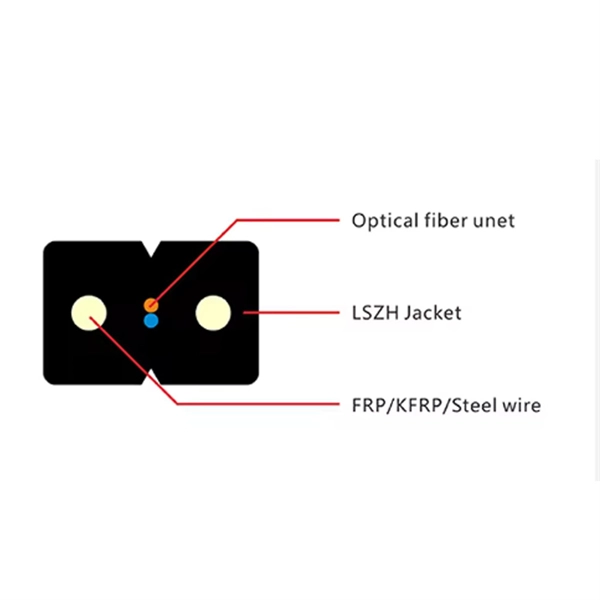

Fiber optic communication wiring terminals

Fiber optic wiring terminals, also known as connectors, align and join optical fibers to enable efficient light transmission with minimal loss.

Overview of Fiber Optic Terminals

Fiber optic terminals, or connectors, are mechanical devices that join optical fibers while maintaining precise alignment of the fiber cores to minimize signal loss and reflection. Unlike permanent splices, connectors allow for easy connection and disconnection, making them ideal for maintenance, network upgrades, and flexible configurations. Each connector typically includes a ferrule, which secures the fiber, and a connector body that protects the ferrule and ensures durability.

Common Connector TypesSC (Subscriber Connector): Square-shaped with push-pull coupling, widely used in FTTH and data centers. SC/APC variants provide low return loss for RF video and GPON networks.

L

C (Lucent Connector): Miniaturized version of SC with a 1. 25mm ferrule, suitable for high-density applications and secure latch connections. MPO/MTP: Multi-fiber connectors used in high-speed data centers for 12, 24, or more fibers, supporting parallel optics and high-density cabling.

S

T (Straight Tip): Bayonet-style connector, commonly used in legacy networks and industrial applications.

F

C (Ferrule Connector): Screw-on type, often used in single-mode fiber applications requiring high precision.

Installation and Performance

Fiber optic terminals can be field-installable or factory-terminated. Field-installable connectors, such as Corning UniCam®, allow for fast, reliable terminations without specialized equipment. Key performance metrics include: Insertion Loss: Light loss when fibers are connected; lower values indicate better performance.

Return Loss: Reflected light at the connection; higher values indicate minimal reflection. Most connectors are spring-loaded, ensuring the fiber faces are pressed together for optimal signal transmission. Connectors are available for single-mode and multimode fibers, with selection based on core size, bandwidth, and application requirements.

Applications

Fiber optic terminals are used in: Telecommunications networks for long-distance and high-speed data transmission. Data centers for high-density interconnections and 100G/400G networks using LC or MPO interfaces. Industrial and broadcast environments, including harsh conditions, where hermaphroditic or ruggedized connectors are required.

Choosing the right connector type ensures compatibility with patch panels, transceivers, and network equipment, while maintaining low signal loss and high reliability.
