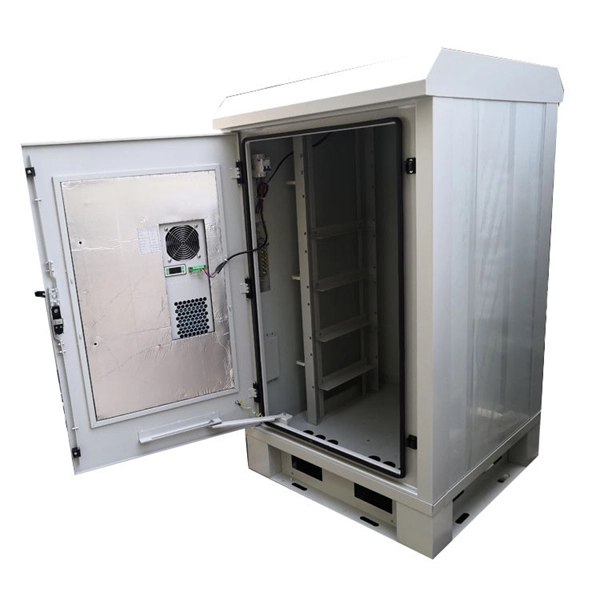

Distribution Box Supply Scheme

A distribution box supply scheme involves safely routing electrical power from a main source to multiple circuits using a distribution box equipped with protective devices and organized bus connections.

Overview of Distribution Boxes

A distribution box (DB box) serves as the central hub for distributing electrical power from a main supply to various downstream circuits, ensuring both safety and efficiency. It typically houses circuit breakers, fuses, residual current devices (RCCBs), and isolators to protect circuits from overloads, short circuits, and ground faults.

Modern D

B boxes may also include smart features like energy monitoring units and communication modules for real-time data collection and remote control.

Types of Distribution Boxes

Distribution boxes are categorized based on installation, phase, and application: Surface Mounted DB Boxes: Installed on walls, suitable for retrofits and industrial environments.

Flush Mounted D

B Boxes: Embedded into walls for aesthetic residential or commercial installations.

Pole Mounted D

B Boxes: Designed for outdoor applications like street lighting.

Single Phase D

B Boxes: For residential or small commercial loads.

Three Phase D

B Boxes: For industrial or large commercial facilities requiring higher power capacity. Lighting Distribution Boxes: Dedicated to lighting circuits. Power Distribution Boxes: Support sockets, equipment, and heavy machinery.

Control Distribution Boxes: Integrate control components such as relays, contactors, and timers.

Components and Supply Scheme

A typical distribution box supply scheme includes: Bus Bars: Conduct electricity within the box and connect the main supply to multiple circuits. Circuit Breakers: Protect individual circuits by tripping during overloads or short circuits. Residual Current Circuit Breakers (RCCBs): Detect imbalances between phase conductors to prevent electric shocks.

Isolators: Allow safe maintenance by manually disconnecting circuits. Neutral Link: Provides a return path for current. Transfer Switches (optional): Switch between main and backup power sources for continuous supply.

The supply scheme is designed to distribute power efficiently, minimize wiring clutter, and ensure safety by limiting direct connections to the main supply. Proper planning involves calculating load requirements, selecting appropriate DB box types, and arranging circuits logically to prevent overloading.

Installation and Planning Considerations

Decentralized vs. Centralized Distribution: Decentralized installation places DB boxes close to loads, reducing cable lengths and improving efficiency. Compliance and Safety: Ensure DB boxes meet standards such as IEC 61439 and include certified components.

Future Expansion: Plan for additional circuits or load increases to avoid frequent upgrades. Environmental Factors: Outdoor or harsh environments may require weatherproof or moisture-resistant enclosures. By following these principles, a distribution box supply scheme ensures safe, reliable, and efficient power distribution across residential, commercial, or industrial installations.
