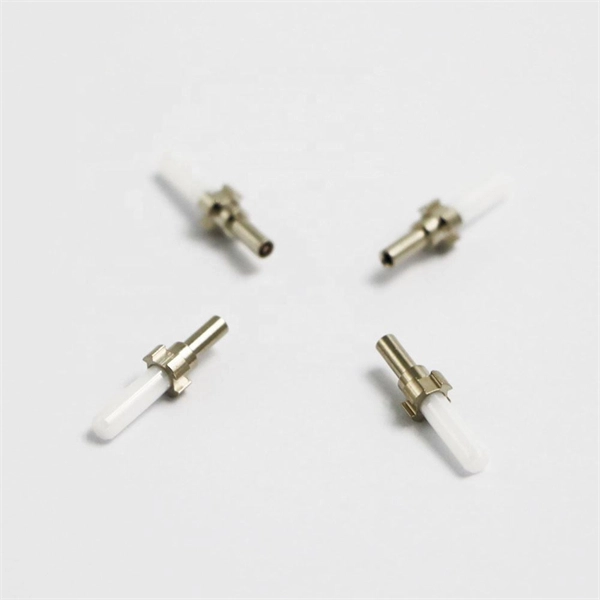

Model of fiber optic sensor

Fiber optic sensors come in various models and series, such as the Keyence FU Series, designed for diverse industrial and environmental applications with high sensitivity and flexibility.

Overview of Fiber Optic Sensor Models

Fiber optic sensors are devices that detect physical, chemical, or biological changes by modulating light transmitted through optical fibers. They are categorized into intrinsic, extrinsic, and hybrid sensors. Intrinsic sensors use the fiber itself as the sensing element, extrinsic sensors rely on external transducers, and hybrid sensors combine both approaches.

Key Sensor Series Example: Keyence FU SeriesThe Keyence FU Series is a widely used fiber optic sensor system suitable for factory automation and industrial environments. Key features include: Sensor Heads: Options include thrubeam, reflective, retro-reflective, and definite reflective types. Environmental Resistance: Some models are designed to withstand harsh conditions, including high vibration, extreme temperatures, and exposure to dust or moisture.

Display and Integration: OLED displays provide clear readings, and reduced wiring simplifies integration with amplifiers and control systems. Detection Capabilities: Can detect small or difficult targets using properties of light such as reflection, refraction, and polarization.

Detection Methods

Fiber optic sensors can operate based on: Intensity Changes: Detecting variations in light intensity due to displacement, pressure, or obstruction. Spectral Changes: Measuring wavelength shifts caused by temperature, strain, or other environmental factors, suitable for high-precision applications.

Applications

These sensors are used in: Industrial Automation: Detecting objects, position, or presence in assembly lines. Structural Health Monitoring: Measuring strain, vibration, or deformation in bridges, buildings, and machinery. Harsh Environments: Locations with high electromagnetic interference, flammable materials, or extreme temperatures.

Components of a Typical Fiber Optic SensorLight Source: Laser diode, LED, or other optical emitters. Optical Fiber: Transmits light to and from the sensing element.

Sensing Element/

Transducer: Modulates light based on the measurand. Detector and Amplifier: Converts optical signals into electronic signals for analysis. Choosing a Specific ModelWhen selecting a fiber optic sensor model, consider: Type of sensing required (intrinsic, extrinsic, hybrid).

Environmental conditions (temperature, EMI, vibration). Detection range and precision. Integration requirements with existing control systems.

For industrial applications, the Keyence FU Series is a reliable choice, but other manufacturers offer models tailored for high-precision, distributed sensing, or specialized environmental conditions.
