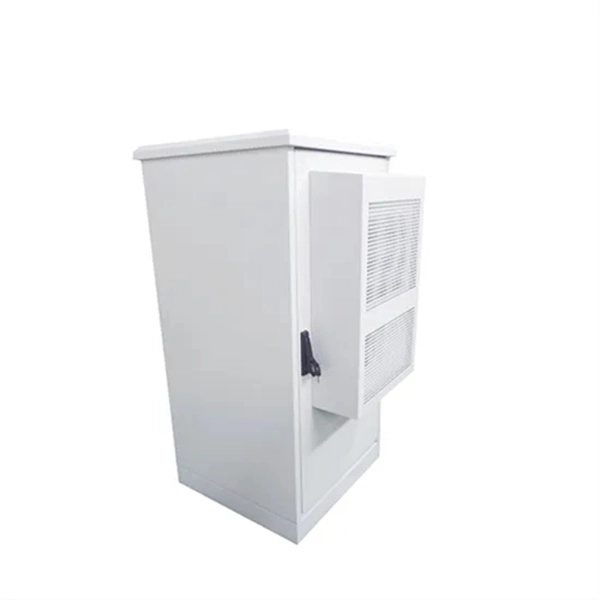

Factory electrical distribution box positioning angle

Factory electrical distribution boxes should be mounted upright with a slight roof slant for outdoor protection, ensuring accessibility, safety, and compliance with IEC and BS standards.

Orientation and Angle

For indoor industrial installations, distribution boxes should be mounted vertically on a wall or support structure, ensuring the front panel is readily accessible for operation, inspection, and maintenance. The recommended height for industrial panels is typically up to 1. 2 meters from the floor, with a maximum width of 1.

5 meters and depth of 0. 5 meters, allowing safe access and clearance around the box (BS 7671, IEC 61439). For outdoor or semi-exposed installations, the roof of the distribution box is slightly slanted on both sides, with an overhang of approximately 50 mm to prevent water ingress and protect against dust and environmental exposure.

This slant does not affect the vertical mounting of the box itself but ensures rainwater or debris does not accumulate on the top surface.

Clearance and Accessibility

Maintain adequate working space around the box for safe operation and maintenance. Ensure the box is free from water, excessive dust, chemicals, or heat sources that could compromise safety or performance. Position the box so that incoming and outgoing cables can be routed without sharp bends, respecting minimum bend radii and pull box requirements if conduits change direction.

Compliance Considerations

Boxes should meet IP55 or higher for outdoor protection, with proper earthing points and secure locking mechanisms. Internal bus bars and components must have sufficient clearance from the box body to prevent short circuits and allow safe operation.

Follow IE

C 61439 for low-voltage switchgear and controlgear assemblies, ensuring the box design supports the system's load and protective devices.

Summary

Mount vertically for proper access and safety. Slight roof slant for outdoor boxes to prevent water accumulation. Maintain clearances around the box for operation and maintenance.

Ensure compliance with IEC 61439, BS 7671, and local electrical codes. This setup ensures the distribution box is safe, durable, and accessible, while protecting internal components from environmental hazards and facilitating future maintenance or expansion.
