Fiber optic pigtail and fiber optic splicing

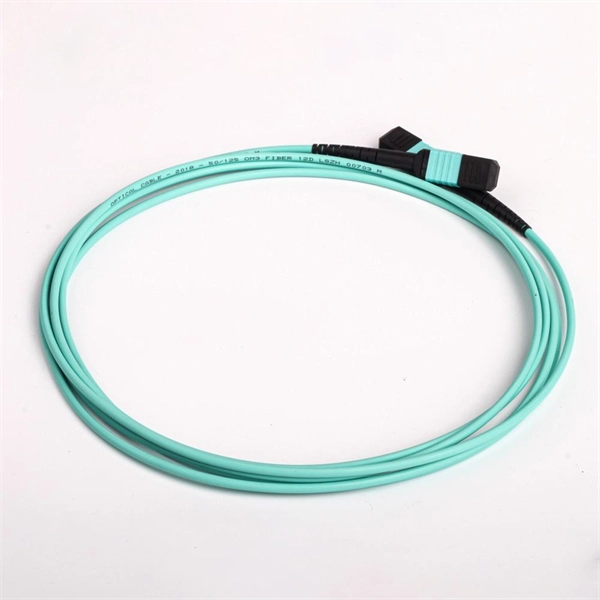

Fiber optic pigtail splicing involves permanently joining a factory-terminated pigtail to a fiber cable using fusion or mechanical splicing to ensure low-loss, reliable connections. What is a Fiber Optic Pigtail? A fiber optic pigtail is a short length of optical fiber with a factory-installed connector on one end and a bare, exposed fiber on the other end.

Unlike patch cords, which have connectors on both ends, pigtails are designed for permanent splicing to incoming fiber cables. The connector end plugs into equipment, optical distribution frames (ODFs), or patch panels, while the bare end is fused or mechanically spliced to the network fiber. Pigtails are available in single-mode or multi-mode variants and with various connector types such as LC, SC, ST, or FC.

Tools and Equipment Required

To perform a professional splice, you will need: Fusion Splicer: Aligns and fuses the fiber ends using an electric arc, creating a continuous optical path. Fiber Strippers: Remove the outer jacket and coating without damaging the glass core.

High-

Precision Fiber Cleaver: Cuts the fiber at a perfect 90-degree angle for seamless fusion. Cleaning Supplies: Lint-free wipes and 99% isopropyl alcohol to remove dust and contaminants. Heat Shrink Sleeves or Mechanical Splice Kits: Protect and secure the spliced fiber.

Splicing Process

Preparation: Strip the fiber jacket and coating from both the pigtail and the incoming fiber. Clean the exposed fibers with alcohol and lint-free wipes. Cleaving: Use a fiber cleaver to create a flat, perpendicular end face on both fibers.

Fusion Splicing: Place the fibers in the fusion splicer, which aligns and melts them together to form a low-loss joint. Protection: Apply a heat shrink sleeve or mechanical splice protector to secure the joint and prevent damage. Testing: Verify the splice quality using an optical power meter or OTDR to ensure minimal signal loss.

Best Practices

Always use high-quality, factory-polished pigtails to reduce signal loss. Keep tools and fibers clean and dust-free, as contamination can degrade performance. Choose the correct connector type and fiber mode for your application to ensure compatibility.

For multi-strand installations, organize pigtails in splice trays to maintain network integrity and simplify maintenance. Fiber optic pigtail splicing is widely used in FTTH deployments, data centers, and telecom networks, providing a reliable and efficient method to terminate fiber runs while maintaining high signal quality.
