Pole-mounted switch relay protection

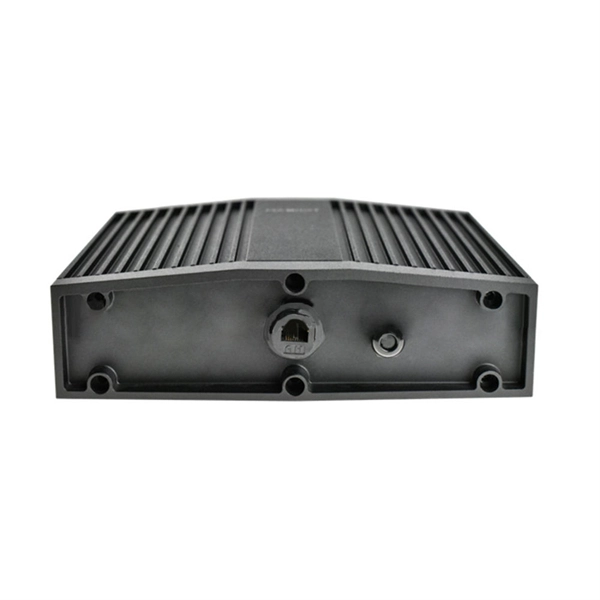

Pole-mounted switch relay protection devices are integrated safety and control units installed on utility poles to protect, monitor, and automate electrical distribution networks. OverviewPole-mounted switch relay protection devices combine switching, protection, measurement, control, and communication functions in a single unit. They are primarily used in radial and ring network power supply systems to detect faults, isolate faulty sections, and restore power to unaffected areas, thereby enhancing grid reliability and preventing large-scale blackouts.

Key Features

Protection Functions: Include overcurrent protection, zero-sequence overcurrent protection, surge suppression, and reclosing capabilities. Devices can store fault records for analysis and support multiple stages of protection. Automation and Control: Many devices integrate automatic fault detection, isolation, and restoration, enabling distribution network automation and reducing manual intervention.

Communication and Monitoring: Equipped with RS-485 or other industrial communication protocols, these devices can interface with supervisory control systems for real-time monitoring and remote operation. Reliability and Durability: Designed for outdoor pole installation, they offer shockproof, moisture-resistant, and lightning-protected housings, with wide operating temperature ranges and low power consumption. User Interface: Modern devices feature human-machine interfaces (HMI) for easy configuration, operation, and maintenance.

Types of Pole-

Mounted Switches

Load Break Switch: Can interrupt load current and close short-circuit current but cannot break high short-circuit currents. Mainly used for sectionalizing lines and manual operation. Circuit Breaker: Can close, carry, and break normal and specified short-circuit currents automatically.

Provides overload and short-circuit protection, making it suitable as the main line protection device. Disconnect Switch with Integrated Relay: Combines switching and relay protection in one unit, often with automatic reclosing and fault detection, ideal for smart grid applications. Recloser Switch: Automatically isolates temporary faults and restores power to non-faulty sections, improving service continuity and reducing outage duration.

Applications

Distribution Networks: Protect feeders, lines, and transformers in medium- and low-voltage networks. Smart Grids: Enable automated fault detection, isolation, and restoration. Industrial and Utility Systems: Provide reliable protection and monitoring for critical infrastructure.

Advantages

Enhanced Safety: Prevents damage to equipment and reduces risk to personnel. Operational Efficiency: Minimizes downtime through automatic fault handling. Data Logging and Analysis: Stores fault events for maintenance planning and system optimization.

Integration with SCADA: Supports remote monitoring and control, enabling modern grid management. Pole-mounted switch relay protection devices are essential for modern, automated, and reliable electrical distribution systems, combining protection, control, and communication in a compact, durable package suitable for outdoor installation.
