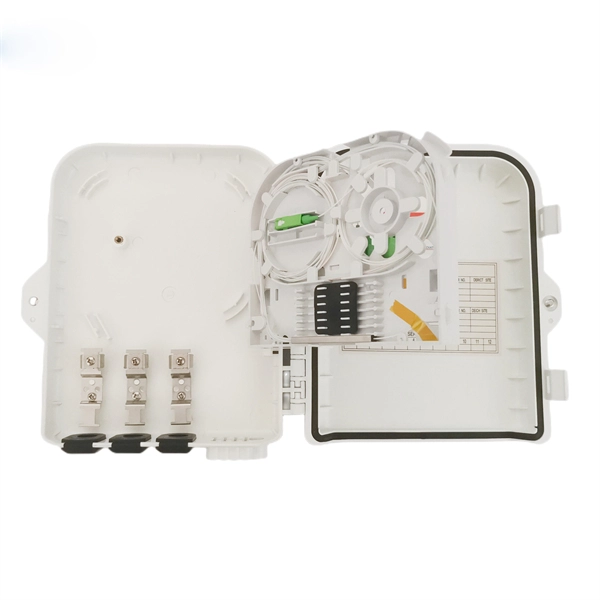

Optical fiber cables are composed of several pigtails

Fiber optic cables transmit data over long distances, while fiber pigtails provide a factory-terminated connector on one end and a bare fiber for splicing, enabling reliable network terminations.

Fiber Optic Cables

Fiber optic cables are high-speed transmission media composed of one or more strands of optically pure glass fibers, surrounded by protective layers. They are designed to carry light signals over long distances with minimal loss. Cables can be simplex (single fiber), duplex (two fibers), or multi-fiber (e.g., MTP®/MPO with 8–72 fibers), and may have connectors on both ends or different types of connectors depending on the application.

They are widely used to connect network devices, patch panels, and distribution frames, providing the backbone for data centers, telecom networks, and FTTH deployments.

Fiber Optic Pigtails

A fiber optic pigtail is a short length of optical fiber, typically 0. 5–2 meters, with a factory-terminated connector on one end and a bare, exposed fiber on the other. The connector end is polished and tested under factory conditions to ensure low insertion loss and high return loss, while the bare fiber end is designed for fusion or mechanical splicing to a bulk fiber cable in the field.

Pigtails are primarily used to terminate multi-core fiber cables at optical distribution frames (ODFs), terminal boxes, or patch panels, providing a reliable, low-loss connection. Key Advantages of PigtailsFactory-grade connector quality ensures consistent performance. Time and labor savings compared to field-terminated connectors.

Flexibility to splice into any cable system, making them ideal for large-scale deployments. Differences Between Pigtails and Patch CordsFeatureFiber PigtailFiber Patch CordConnectorsOne end terminated, one end bareBoth ends terminatedCable TypeUsually unjacketed, thin (0. 9mm or 3.

0mm)Jacketed, thicker (2. 0–3. 0mm)LengthShort (0.

5–2m)Short to medium (1–10m)ApplicationSplicing to bulk fiber cables, connecting to ODFsConnecting devices, patch panels, or pre-terminated modulesFunctionActs as a “translator” between bulk cables and connectorsDirect connectivity between two terminated points ApplicationsFiber Pigtails: Used in structured cabling for splicing multi-core cables to patch panels or ODFs, ensuring organized, low-loss connections. Common in data centers, telecom rooms, and FTTH deployments. Fiber Cables: Serve as the main transmission medium, connecting network devices, backbone systems, and distribution frames over short or long distances.

Patch Cords: Connect active devices to passive components or link two pre-terminated points, providing flexible, ready-to-use connections.

Splicing Methods

Pigtails are typically joined to fiber cables using fusion splicing (permanent, low-loss) or mechanical splicing (temporary or quick deployment). The bare fiber end is carefully cleaved and aligned with the incoming fiber to ensure minimal signal loss and high reliability.

Summary

In optical networks, fiber optic cables form the backbone for data transmission, pigtails provide a reliable interface for splicing and equipment connections, and patch cords enable flexible device-to-device connectivity. Understanding their differences, proper selection, and splicing techniques is essential for building high-performance, low-loss fiber optic networks.
