Specifications of Cable Tray Clamp Type Supports

Cable tray clamp supports secure trays to structural elements, providing stability, load-bearing capacity, and proper cable routing in industrial and commercial installations.

Overview of Cable Tray Clamps

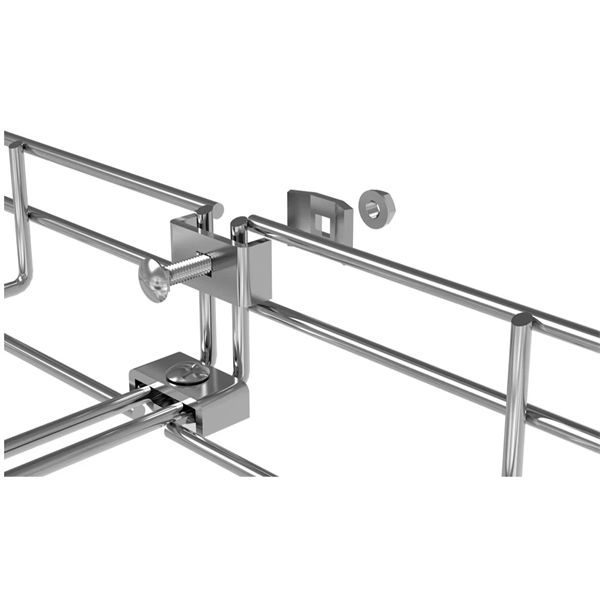

Cable tray clamps are essential components of a cable support system, designed to secure cable trays to beams, walls, ceilings, or other structural elements while maintaining proper alignment and load distribution. They ensure that cables remain organized, protected, and safely supported under mechanical and environmental stresses. Common Types of Cable Tray ClampsHold-Down ClampsUsed to fasten trays directly to C-channels, beams, or flat surfaces.

Heavy-duty versions can support high loads and often include beam clamp set screws, eliminating the need to drill into structural elements. Ideal for bridges, industrial floors, or elevated installations. C-ClampsDesigned to attach hanger rods or trays to I-beams, wide flange beams, or angles.

Typically made of unfinished iron and can support loads up to 400 lbs. Provide a versatile and reusable solution for structural attachment.

Grounding Clamps

Feature a copper alloy body with durium bolts, nuts, and washers, sometimes tin-plated. Secure trays while providing electrical grounding for safety. Often used in installations where electrical continuity is required.

Expansion Guides and Special Heavy-

Duty Clamps

Allow for thermal expansion and contraction of trays. Can be field-drilled to attach to most surfaces, reducing labor costs.

Materials and Coatings

Cable tray clamps are typically made from steel, stainless steel, or copper alloys, with optional galvanization or tin plating to improve corrosion resistance. The choice of material depends on environmental conditions, such as exposure to moisture, chemicals, or outdoor elements.

Installation Considerations

Clamps must be compatible with the tray type (ladder, mesh, or solid-bottom). Proper load distribution is critical to prevent tray sagging or failure. Mounting elements like brackets, plates, or rods are used to attach clamps to ceilings, walls, or beams.

Accessories such as protective rings, barrier strips, and connecting plates can enhance cable organization and safety.

Summary

Cable tray clamp supports are a key part of cable management systems, providing mechanical stability, electrical grounding, and flexibility for various installation scenarios. Selecting the right clamp type—hold-down, C-clamp, grounding, or expansion guide—depends on load requirements, structural compatibility, and environmental conditions. Proper installation ensures efficient, safe, and long-lasting cable tray performance.
