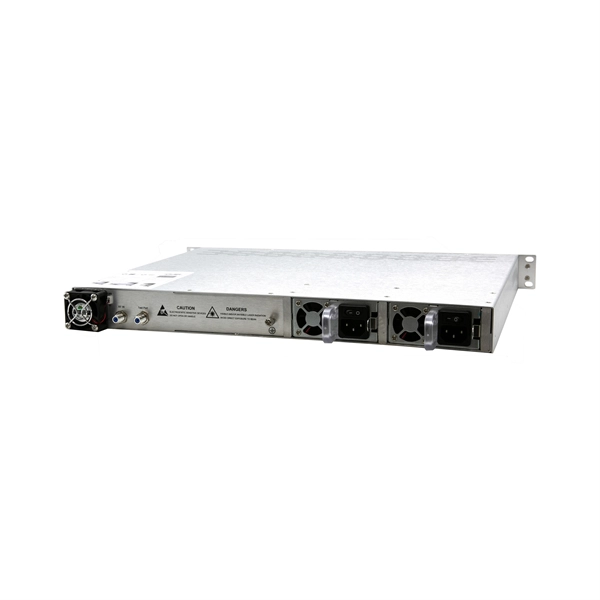

Types of Optical Wavelength Multiplexers

Optical wavelength multiplexers are primarily classified into Coarse Wavelength Division Multiplexing (CWDM) and Dense Wavelength Division Multiplexing (DWDM), with additional categories including optical add-drop multiplexers (OADMs) and emerging space-division multiplexing (SDM) systems. Main Types of Wavelength Multiplexers1. Coarse Wavelength Division Multiplexing (CWDM) CWDM systems use fewer channels with wider spacing, typically 20 nm apart, covering the spectral range from 1270 nm to 1610 nm.

CWD

M is cost-effective, suitable for shorter distances, and allows simpler transceiver designs. It typically supports 8 to 16 channels per fiber and avoids regions with high OH absorption in silica fibers to reduce signal loss. 2.

Dense Wavelength Division Multiplexing (DWDM) DWDM systems employ narrow channel spacing, often 50–100 GHz, enabling 40 to 160 channels in the C-band (1530–1565 nm) and L-band (1565–1625 nm).

DWD

M is designed for long-haul, high-capacity networks, offering high spectral efficiency and supporting data rates of 100 Gbps or higher per channel.

DWD

M can also integrate Raman or erbium-doped fiber amplifiers (EDFA) to boost signal strength over long distances. 3.

Optical Add-

Drop Multiplexers (OADMs) OADMs allow selective insertion or removal of specific wavelengths at intermediate nodes without affecting other channels. They enhance network flexibility and are used in reconfigurable optical networks.

Advanced OAD

Ms, such as Reconfigurable Optical Add-Drop Multiplexers (ROADMs), support dynamic wavelength routing and flexible grid allocation. 4.

Space-

Division Multiplexing (SDM) SDM is an emerging technique that uses multiple spatial channels within a single fiber or multiple fibers in parallel, including multi-core fibers (MCF) and few-mode fibers (FMF).

SD

M can dramatically increase capacity but requires careful management of crosstalk and mode coupling.

Additional Considerations

Multiplexer Components: MUX/DEMUX units combine and separate wavelengths at the transmitter and receiver ends, respectively, enabling efficient use of a single fiber.

Time-

Division Multiplexing (TDM): Sometimes combined with WDM to further increase capacity by interleaving optical pulses in the time domain. Network Flexibility: Modern multiplexers focus on scalability, spectral efficiency, and dynamic bandwidth allocation, critical for adapting to changing traffic patterns. Challenges: Nonlinear effects, insertion losses, and digital signal processing complexity are key considerations in designing high-performance multiplexers.

In summary, optical wavelength multiplexers are classified based on channel spacing, spectral efficiency, and network functionality, with CWDM and DWDM being the most widely deployed, while OADMs and SDM provide advanced flexibility and capacity for modern optical networks.
