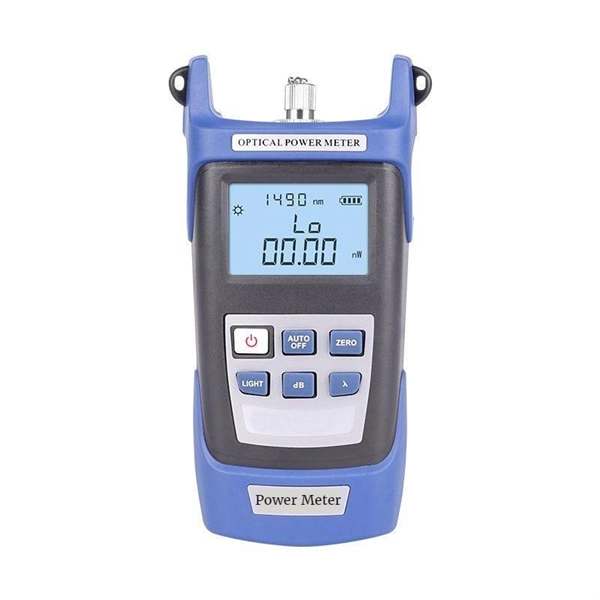

Tfn full-featured optical power meter

The TFN optical power meter is a versatile, portable fiber optic tester combining an optical power meter, visual fault locator, and LED light for accurate field measurements and troubleshooting. Key FeaturesMulti-functionality: TFN optical power meters integrate three tools in one device: an Optical Power Meter (OPM) for measuring optical signal strength, a Visual Fault Locator (VFL) for detecting fiber breaks or bends, and a high-brightness LED light for working in dark environments. Measurement Accuracy: Equipped with an InGaAs detector, the OPM provides precise readings from -70 dBm to +10 dBm with ±0.

2 dB accuracy at key wavelengths like 1310 nm and 1550 nm. Some models support dual display modes, showing both linear (mW) and logarithmic (dBm) values simultaneously for convenience. Wavelength Support: TFN meters cover a wide range of wavelengths, including 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, and 1650 nm, making them suitable for most fiber optic systems.

Portability and Power: Compact and lightweight, these meters are designed for fieldwork. They typically feature a rechargeable 1800 mAh battery lasting over 6 hours, with Type-C charging for convenience. Some mini models can operate up to 72 hours using AAA or lithium batteries.

User-

Friendly Operation: Devices include a sunlight-readable LCD screen, one-touch wavelength switching, backlight, and auto-shutdown for energy saving.

The VF

L emits a red light up to 10 km (V10T model) to locate faults quickly. Additional Functions: Certain models support RJ45 network cable testing, one-touch reference setting for insertion loss tests, and optional flashing modes for fiber identification in low-light conditions. ApplicationsTFN optical power meters are ideal for fiber optic installation, maintenance, and troubleshooting in telecom, data centers, and industrial networks.

They allow technicians to measure optical power, detect faults, and work efficiently in the field without carrying multiple devices.

Summary

The TF

N optical power meter is a cost-effective, compact, and multifunctional tool for professionals working with fiber optics. Its combination of accurate power measurement, visual fault detection, and portable design makes it suitable for both indoor maintenance and outdoor fieldwork, supporting a wide range of wavelengths and providing long battery life for extended use.
