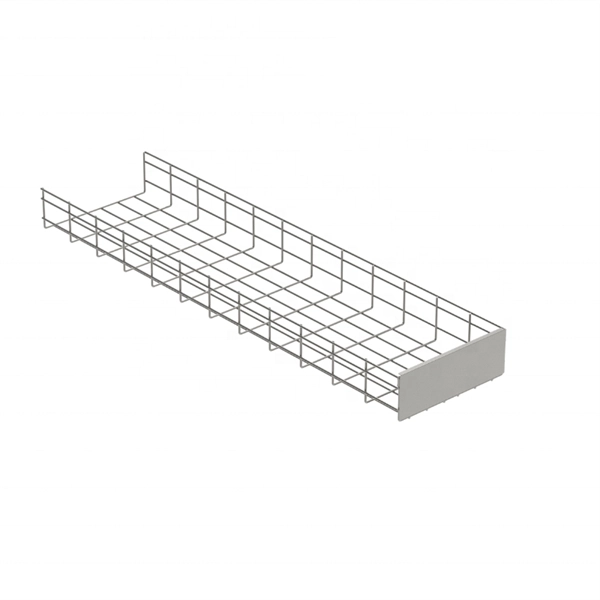

Meaning of cable tray dimensions

Cable tray dimensions—width, depth, length, and material thickness—determine cable capacity, ventilation, structural support, and compliance with electrical standards.

Key Dimensions

Width: The inside measurement between the side rails of a cable tray, which primarily determines how many cables can be accommodated. Standard widths range from 50 mm to 1000 mm (or 2 to 36 inches), with narrow trays (100–150 mm) used for control or instrumentation cables and medium to wide trays (300–900 mm) for power distribution and industrial applications. Depth (Height): The vertical distance from the tray bottom to the top of the side rails, typically 25 mm to 150 mm, ensures cables are held securely and allows for proper ventilation to prevent overheating.

Length: Most cable trays are manufactured in 3-meter (10-foot) sections, which balances ease of transport and installation while minimizing joints. Material Thickness: Varies depending on load requirements and material type. For example, galvanized trays must meet ASTM A653 standards for corrosion resistance, and heavy-duty trays often require 2.

5 mm or more thickness with reinforced side rails.

Importance of Proper Sizing

Selecting the correct dimensions is critical for: Cable fill compliance: Avoids overcrowding and ensures proper airflow, typically filling only 40% of the tray cross-section to allow heat dissipation. Structural integrity: Supports the weight of cables without sagging or failure. Future expansion: Provides spare capacity for additional cables without costly retrofits.

Regulatory compliance: Meets NEC, IEC, and NEMA standards for safety and installation.

Calculation Guidelines

To determine the required tray width: Calculate total cable cross-sectional area using manufacturer specifications. Apply the fill ratio (maximum allowable percentage of tray cross-section occupied by cables, usually 40–50%). Divide by tray depth to find the minimum width needed.

Example: For a tray carrying 20 power cables and 35 control cables, a width of 150–200 mm may be recommended to allow for 25% future expansion.

Summary

Cable tray dimensions are not arbitrary; they are standardized to ensure safety, efficiency, and long-term reliability. Understanding width, depth, length, and material thickness, along with proper calculation of cable fill, is essential for designing compliant and future-ready electrical installations.
